Wooden Balau Deck Built Waterfall, Durban July 2018

This slideshow requires JavaScript.

This wooden deck we built in Waterfall, Durban was part of a new build at Focus on Ithemba along Blessing Ninela Road, Waterfall. They were building a new boardroom and office complex and part of the design was a wooden exterior deck.

The job was referred to us by Mass Landscapes, Miles Steenhuysen, who was contracted to do the landscaping. His details can be found here.

In consultation with Miles and the project manager we designed the deck so as to flow around this office complex comfortably and aesthetically and within budget.

The structure of the deck was the standard H3 and H4 CCA treated pine. H3 and H4 CCA treated pine is suitable for outdoors decks. H3 has a life span of a minimum of 50 years and correctly treated H4 pine can live in the ground in constant contact with wet soil for a minimum of 20 years. These are guidelines provided by www.sawpa.co.za. The full document can be found here.

We used 19 x 68mm yellow balau deck boards as the surface. There is a difference between red and yellow balau. The red balau, which is a bit cheaper in South Africa, is a lot more porous and less dense than the yellow balau and as a result will absorb and retain water more easily than yellow balau and will therefore probably rot more quickly. We use only yellow balau which is the most cost-effective hardwood for decking in South Africa. It is not correct to assume that treated pine is cheaper than balau deck boards. Please see here for an article on the difference between balau and pine in decking.

The building we were attaching this deck to was not completely square with itself as it was an old building that had been extended. As such one needs to be very careful when building wooden decks against walls that aren’t square or straight. At some point there will need to be a correction to eliminate the problem and it needs to occur where it is less visible. Either the deck can be built square to itself but it will highlight the errors on the building or the deck needs to be built off square to take up any difference between the building and the deck in a place where it is less visible and can be concealed.

Screw holes we filled with epoxy and sanded flat. The epoxy used was a clear epoxy which was mixed with saw dust to match the colour. The epoxy in the screw holes prevents water sitting in the counter sunk screw hole and being absorbed up the end grain which would cause rot to set in more quickly. The deck can be oiled after sanding or left to grey naturally.

For a free no obligation quote on timber decking and related construction, we can be contacted on 031 – 762 1795 or use the contact us form below.

Balau wooden screens installed in Umhlanga Durban

This slideshow requires JavaScript.

We installed these balau wooden screens in Umhlanga in Durban in early 2018. The brief was to provide some privacy to the upstairs verandah. There was originally a glass balustrade on this verandah and being at the end of a cul-de-sac this property’s verandah was very visible to vehicles and people driving or walking to the end of this cul-de-sac.

We removed the glass balustrade to make way for the wooden balau privacy screens. A balau structure was first installed fixing 40 x 60 vertical posts to the top side of the lower slab and the underside of the top slab to provide a frame on to which we screwed our horizontal balau slats.

When installing screens it is quite common to use different sized slats as we did here. Balau deck boards normally come in two different sizes being 19 x 68mm and 19 x 90mm. 19mm is sufficient thickness for screens and then one can mix the width by using a 68mm board and then a 90mm board. One can also rip a 68mm in half leaving 30mm and use that as well to create a visually appealing screen with differing widths of boards.

Gaps between these boards should ideally be 19mm to allow for wind loading. Obviously the closer the boards the less wind can penetrate the screen thereby increasing the wind loading on the screen. A gap bigger than 19mm results in too large a gap and privacy is sacrificed.

Sufficient vertical supports should be provided for stability and integrity and they should be close enough together so that the boards don’t bow between supports. Balau can normally be spanned about 600mm to 1m between supports to sufficiently pull each board straight to reduce bowing. At times a “strap” can be installed behind the boards to pull them all straight.

It is often a lot cheaper, and just as effective, to use a correctly treated pine structure to fix these boards to. However with a 19mm gap and visibility of the structure as well as visibility from behind, we prefer to use a balau structure. In this instance we used a 40 x 60 balau solid piece from top to bottom which worked well.

These screens can be oiled or left to grey naturally. Either way the life span of the wood is not increased that much be oiling them as balau contains natural toxins which limit insect infestation and oils and resins which repel water and limit rot. If they are to be sealed then an oil is the right way to go. Any other coating that dries on the surface of the wood will eventually peel and flake which will be costly to remove and re-coat.

For a no obligation quote on your timber decking, screens, pergolas etc. please contact us on 031 – 762 1795 or use the contact form below.

Wooden Balau Decking Companies in Durban

This slideshow requires JavaScript.



Here’s a wooden deck we at The Wood Joint built in Durban recently. The Wood Joint is a wooden decking company situated in Durban and servicing most of KZN. It was a low-level wooden deck basically at ground level joining the pool to the patio and semi surrounds. The site was situated in la Lucia Durban.

When building a wooden deck that will join a verandah to a pool, one needs to be careful to set the height of the pool correctly. The height to the verandah is of course pretty much set based on what the threshold of the sliding doors are. So working from a datum line of the top of the tiles of the verandah one would set the top of the concrete ring beam of the pool down 70mm from the required height of the deck. This will allow for a substructure of 50mm and a deck board thickness of 20mm (19mm in fact but to keep things simple rounded to 20mm). A 50mm batten fixed to the top of the concrete ring beam of the pool will give sufficient space to allow water to evaporate properly, keeping below the deck as dry as possible, and enough structure to create a positive fixing of deck board to bearer. The distance created between top of deck and pool should be minimal. It is not advisable to go much higher than 70mm because it creates a very big “climb” out the pool (from water level to top of deck).

In this deck pictured you will see we ran the deck boards perpendicular to the verandah and pool side. Using this method it is not that important if the side of the pool is parallel to the verandah as the length of the deck boards can be varied quite easily without noticing any difference in length. On the other hand when the deck boards are run parallel to the pool side and verandah one needs to be careful to get the two as perfectly parallel as possible. Any difference will be visible because a deck board will need to be cut in a wedge shape to complete the space. If the difference is not that great then one can “fan” the deck boards to take up the difference in space by making one end’s gaps slightly bigger than the other end. So on one end a 6mm gap can be left and on the other a 4mm gap (normally 5mm throughout). This gains 1mm per deck board run. After 20 deck boards one can adjust for a 20mm difference in spacing. Another “trick” when running boards parallel to the pool side and verandah is to try to end on a full board rather than a half board. Again space between boards can be adjusted either up or down to try to end on a full board. It is much neater and won’t cause as many problems going forward. From the pics you’ll see we ended the deck on a half board which in this case was unavoidable because of the configuration of paving and deck.

You’ll see from the pics that the garden is mostly left for landscaping until after the deck has been built. Trying to build a deck with newly laid grass and not damaging it is near impossible. Always get you building work done before landscaping.

For a free no obligation quote on your decking requirements in Durban please call us on 031 – 762 1795 or use the contact us form below.

Balau Timber Pool Deck, La Lucia, Durban

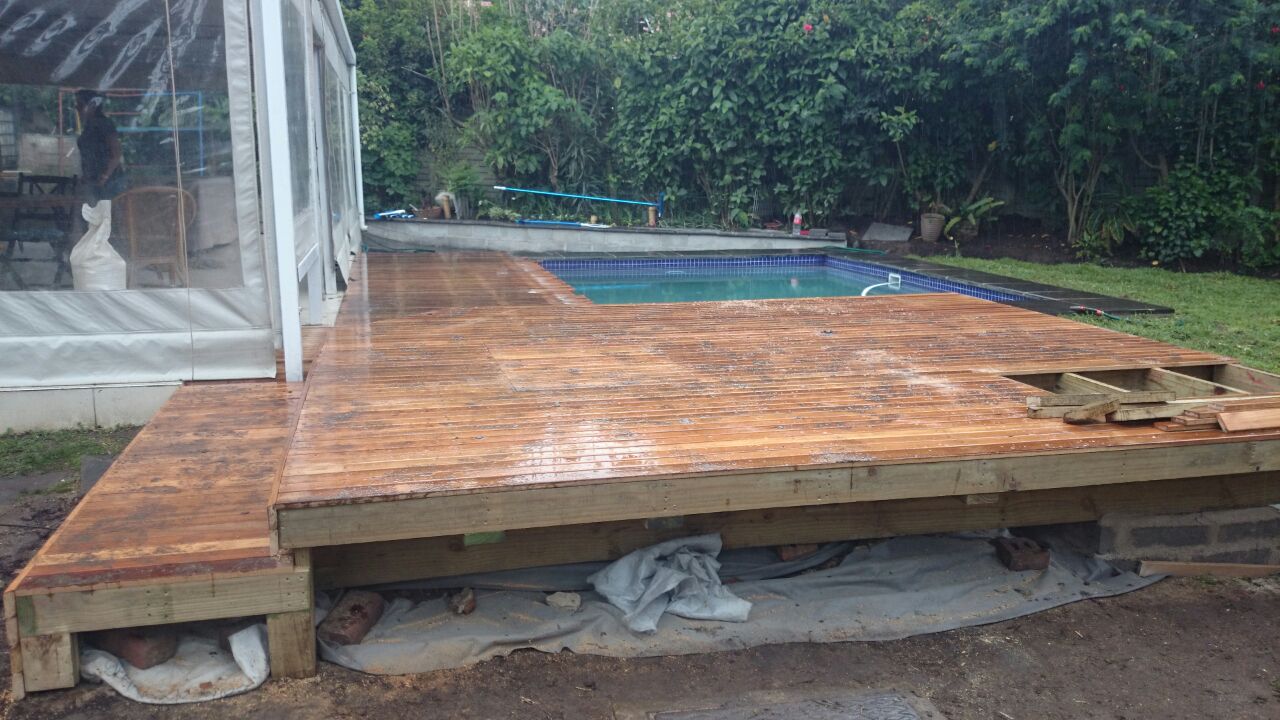

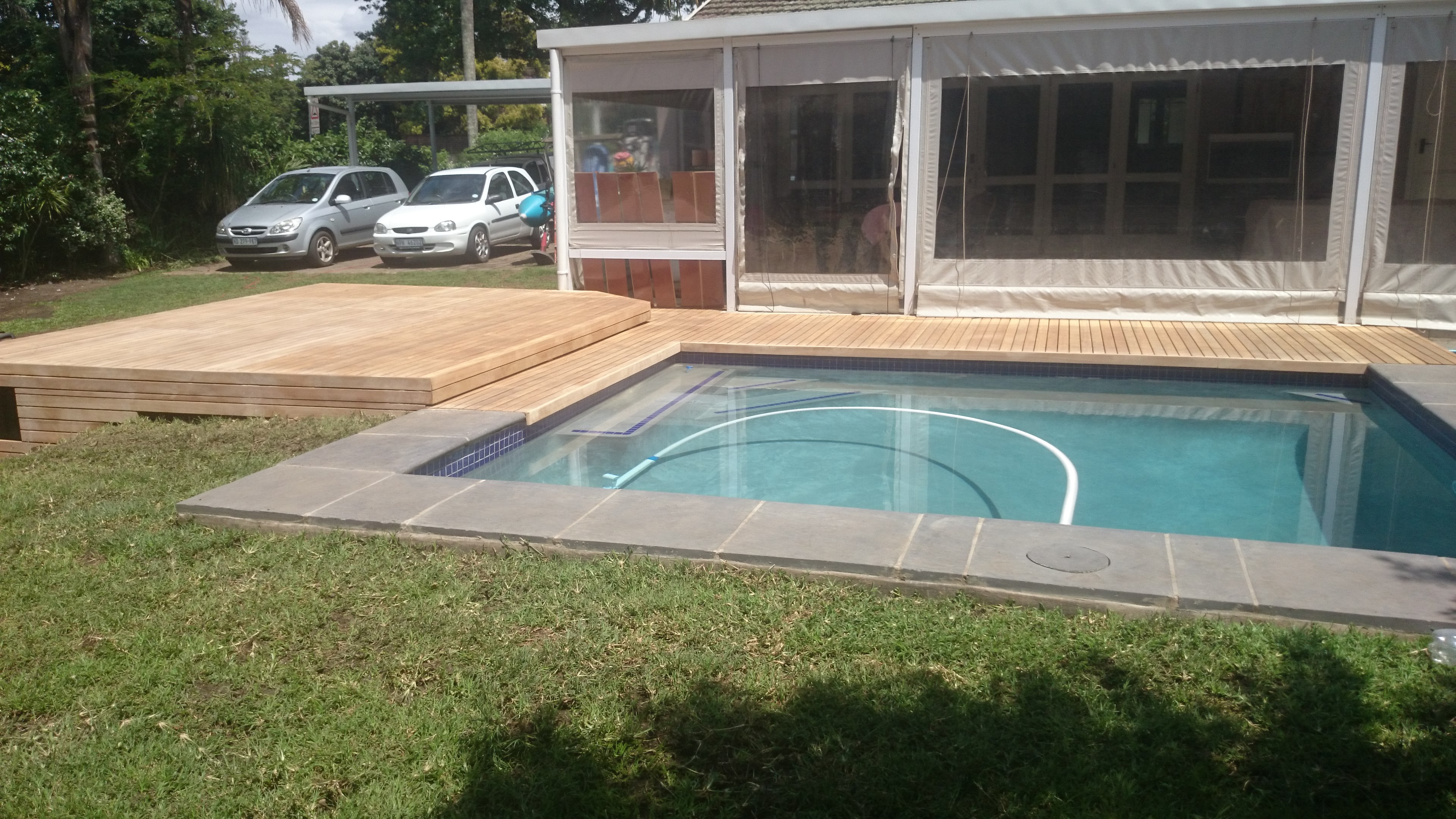

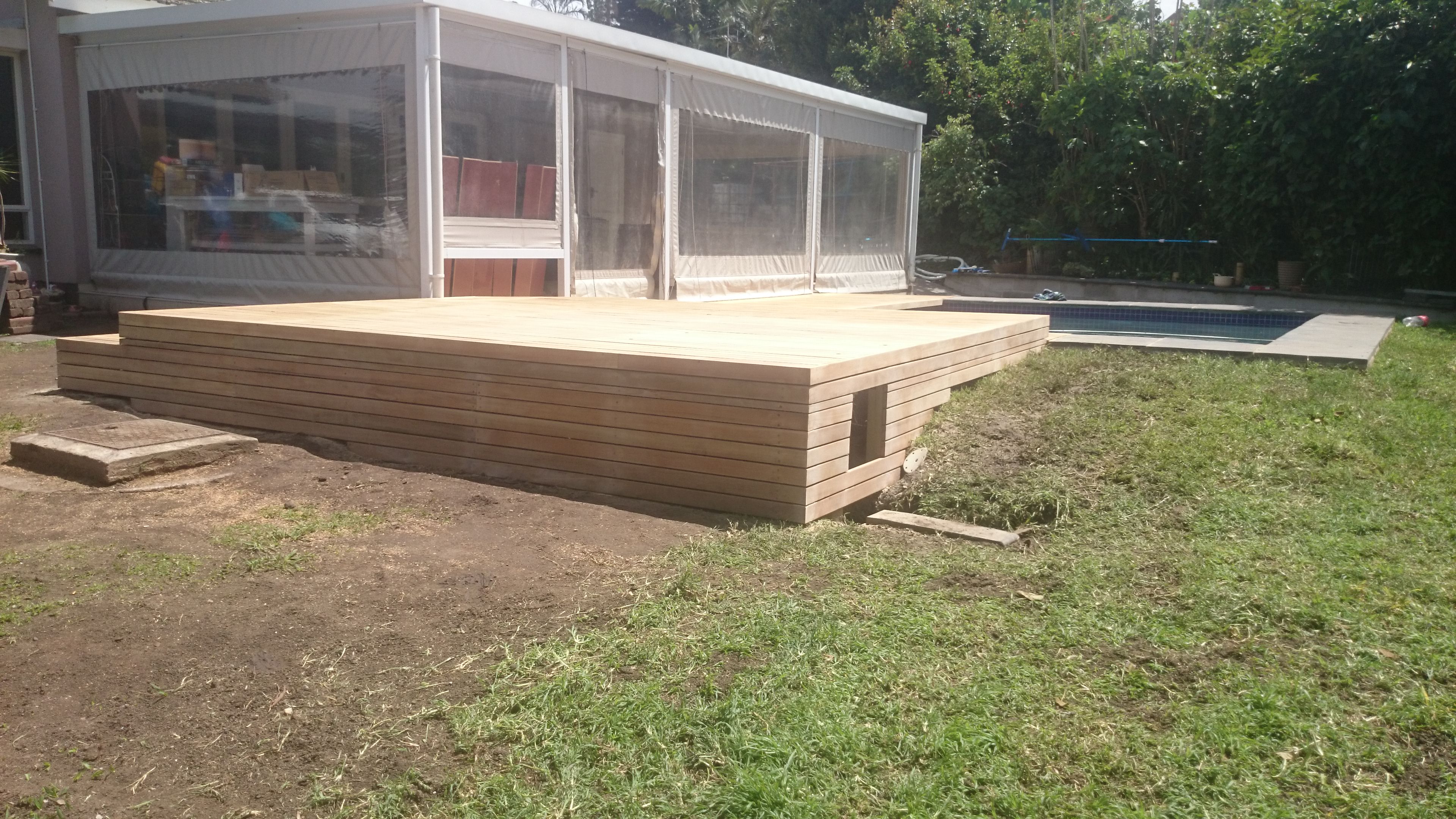

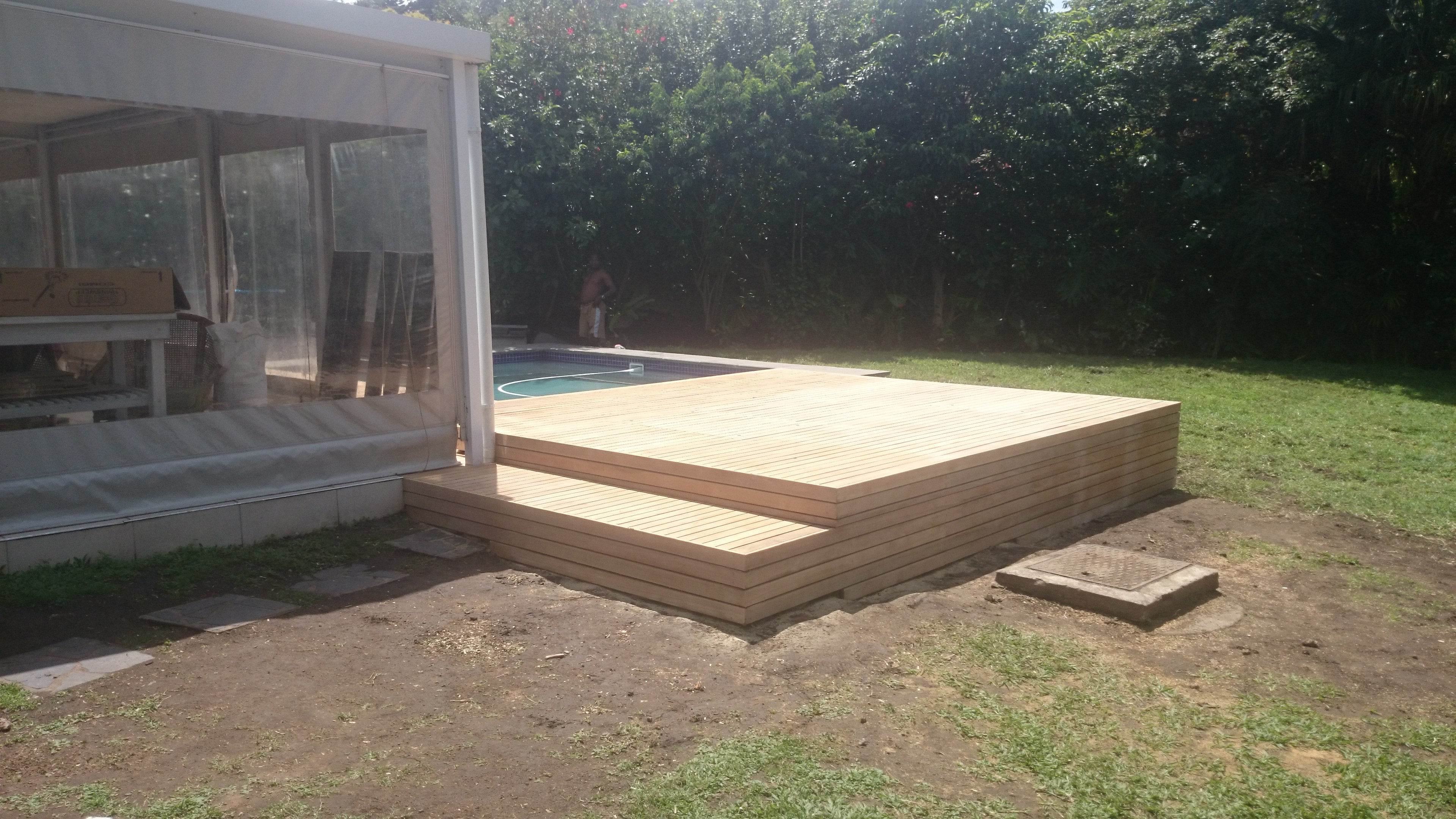

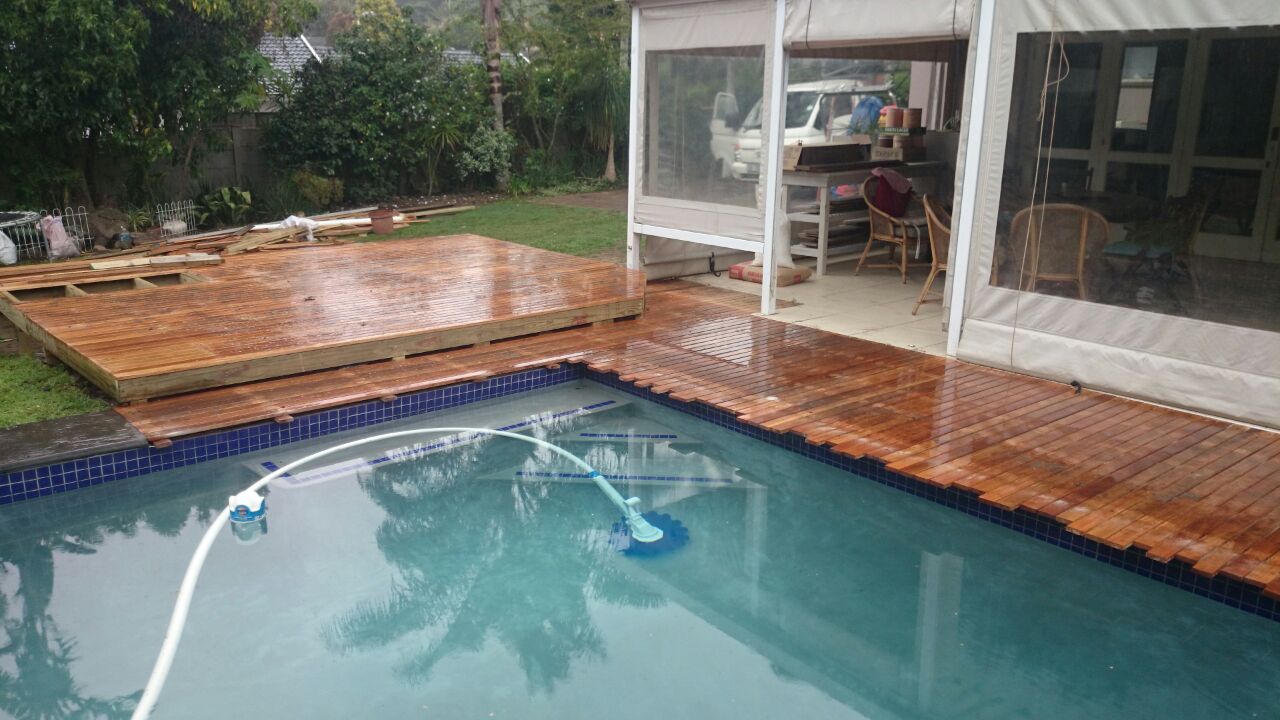

Here’s a wooden pool deck we built in La Lucia, Durban recently. In the gallery above you can see pics of the old deck and then pics of the new deck. The old wooden pool deck had started to rot at critical points. The reason for rot in many wooden decks is that the screw holes are not plugged, water gets in and travels up the end grain of the wood resulting in rot at the screw holes. Water travels more easily along the end grain of wood than the side or face grain. So it is important to seal the end grain as far as possible to prevent this. In the case of the end of deck boards the water never really gets trapped so it can drain away quickly enough to prevent rot. However in the case of a screw holes water collects in the screw hole and then has enough time to be absorbed by the end grain before it evaporates. As a standard procedure we fill counter sunk screw holes with epoxy to prevent this from happening.

The epoxy we use is clear so that saw dust can be mixed with it to match the colour as closely as possible. It is also slightly pliable. In hot and cold weather, wood expands and contracts, as does most materials. If you consider a screw hole. The sides of the screw hole will expand thereby closing the screw hole or making it smaller. Whatever is in the screw hole, as a plug, will also expand. So if the screw hole is getting smaller and the plug is getting bigger it makes sense that whatever is in there will likely try to “pop” out. Using a slightly pliable epoxy can reduce the chance of this plug popping out. Hence the reason for not using solid wood plugs cut with a plug cutter. The epoxy should be pliable enough to take up the expansion of the screw hole but hard enough not to degrade due to weather conditions.

We used 90mm balau deck boards on this deck. They are slightly more expensive but some clients prefer them to the standard 68mm boards. Being a wider board one needs to secure them on both shoulders on each joist rather than just a single screw in the middle of the boards, as is the case with a 68mm board.

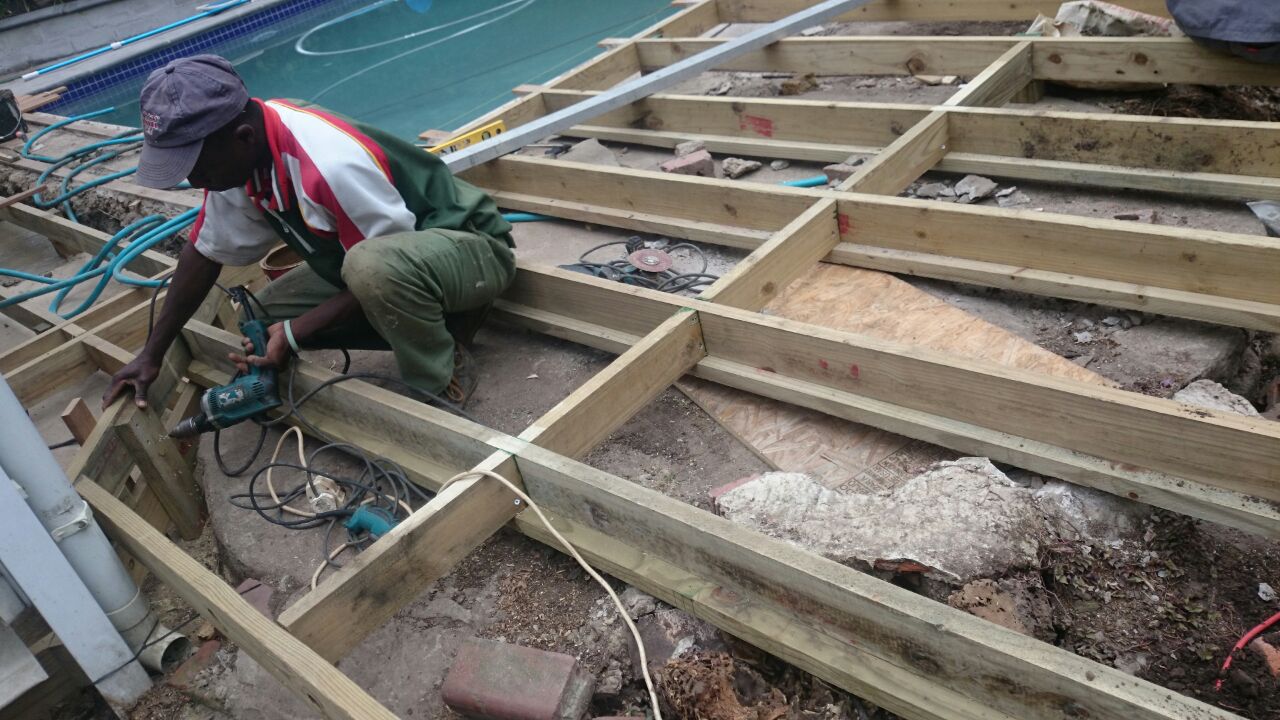

The job took a bit longer than I would have liked because the substrate that we were building on top of, paving and concrete in this case, were quite uneven so we had to shim and trim joists to get the top of our joists level, flat and at the desired height to be flush with the inside of the house. The jacuzzi cladding was also quite tricky because we had to build a removable structure so that one can access the front of and below the jacuzzi. One side of the jacuzzi step is also wider than the other one so the corner required some fancy carpentry work in order to get the boards to line up and match. I’m glad I took so many pics of the deck before we removed it so that we could copy it exactly.

There were also some wedges that we had to cut along the front edge as the tiles and existing patio were not square to the wall we were building our wooden deck up against. Whenever the existing buildings are not square there is always some sacrifice one needs to make and the trick is to get it least visible to the eye. In this case the client wanted the wedges rather than cutting the tiles or bringing the front of the deck past the line of existing buildings.

For a free no obligation quote on your wooden pool deck, or other balau timber construction, please call us on 031 – 762 1795, or use the contact form below and one of our representatives will get in touch with you.

Wooden Decking Durban

Wooden decking DurbanWe built this wooden deck in Pinetown, Durban over a well so could not rest any joists on the well lid itself. Normally we would have raised the height of the deck enough to use 50 x 228 as joists. A 50 x 228 piece of wood can be spanned about 3m without any support below which would have solved our problem. However we could not come up that far as that would have resulted in two steps from the raised deck level to the tiled area on the patio.

We used 38 x 152 stock as our joist material, compared to the normal 38 x 114 stock which we normally use. This allowed us to span up to about 2.2m which still wasn’t quite far enough to get over the well. We brought the feet of the deck in as close as we could and placed them on top of the side wall of the well. We also braced the deck in other places so as to stop any bouncing which would have occurred otherwise. There was also a corner that we had to cut off so that it created a clear pathway from the lower deck around the awning upright and on to the tiled patio. Half of the Wooden decking Durbanpool was built with pavers or coping stones on the edge of the pool and the other half had wooden decking. So we had to get all our levels right to create a seamless integration between materials. It is quite popular now to mix materials and have a combination of pavers and wood and grass.

The pool pump was installed below the deck on the highest end and some trap doors were built on top of the deck to access the filters etc. We had to build a big enough trap door to allow a person to climb in there to change the sand or do other maintenance if needed.

The sides were clad to block visibility underneath the deck and a full length step was built along the one side for access to the grassed area.
A small opening was created on one side to house the pump DB board and this can later be hinged with a small door if the client wishes.

Wooden decking DurbanThe challenges on building pool decks between a tiled area and the side of a pool is to get the deck boards to fit into the space you have been given to work with. If the side of the pool isn’t 100% parallel to the side of the house, up to which you will deck, then you need to adjust the spaces between deck boards on one or both sides of the deck to either gain or lose space as you lay deck boards. If for instance one side is 20mm wider than the other side, you will need to gain 1mm per row of deck boards in order to bring your deck boards parallel to the house so that you don’t end on a wedge-shaped deck board. At times this can be quite tricky. We are working on one in Hillcrest where the house and the pool paving is 77mm out of parallel. The total distance is only 2.4m. So the space will take approximately 32 deck boards to fill. Which means we need to gain or lose more than 2mm per row of deck boards to bring the last deck board parallel to the side of the house (or pool depending on which side we start decking). What we’re doing there is to increase the gap between deck boards to 6mm one side and reduce it to 4mm on the other side.
Then the last trick is to adjust your deck board spaces so that you don’t end on a half deck board. So once you are parallel you need to either reduce Wooden decking Durbanthe gap tot 4mm or increase to 6mm to gain or lose space so you end on a full deck board.

For a free no obligation quote on your wooden sun deck, balustrades, walkways, pergolas, screens and other timber construction, please call us on 031 – 762 1795, or use the contact us form below.
