Wooden Deck in Scottburgh, South Coast KZN

This was a wooden deck built in balau for a client who had opened a Bed and Breakfast on the coast. As you can see form the pics the wooden deck was built in the front of the property overlooking the sea. There were of course strict time lines in which we had to complete this wooden deck as they had already made confirmed bookings. With these job which are a fair distance from home we normally rent accommodation and pay the builders a live out allowance for food etc. It inevitably pushes the cost of the build up slightly which is unavoidable.

There are some before and after pics in this article. We had to excavate the soil below. It is always best to leave a fair amount of space below the bottom of the structure and the bottom of the deck boards to allow sufficient airflow for water evaporation. If the deck structure is touching the ground then one would need to use H4 CCA Treated timber which has a minimum life span of 20 years in constant contact with wet soil as per SAWPA (South African Wood Preservers Association). H3 CCA Treated pine as a structure which is NOT in constant contact with wet soil has a minimum life span of 50 years if correctly installed. So it makes sense to keep the structure to H3 for cost purposes, and expected minimum life span, but keep it well clear of any soil. By allowing air to flow freely between the structure and the ground keeps everything relatively dry below and the deck structure will last a lot longer. Continual dampness below speeds up rot and premature failure. In this instance we excavated to at least 300mm below the structure.

There was a pool that had been installed prior to our build by Clear Blue Pools – Gary Botha (071 679 1013) and we worked closely with the pool builder so that the concrete ring beam of the pool was set down 60mm from the desired deck height (top of deck). This allows us a 40mm batten on top of the concrete ring beam and a 19mm deck board. 40mm is the minimum we like to allow for this purpose, again to allow for sufficient air flow to keep things dry between the deck surface and the ring beam. These cleats or battens are fixed directly to the concrete ring beam and the rest of the joists which are suspended above soil become a 38 x 114 to give it lateral strength.

The rest of the deck was pretty much the same then as the other decks we’ve built using 19 x 68mm yellow balau deck boards, counter sunk screw holes filled with clear epoxy and saw dust mixture, sanded flat and oiled using a decking oil.

For a free no obligation quote on your deck please call us on 031 – 762 1795 or use the contact us form below.

Wooden Balustrades

Wooden Balustrades Durban and Cape Town

Balau Horizontal Balustrade

Wooden balustrades are necessary on all decks that are above 1m off the ground for safety reasons. Some people opt for them even if the deck is lower than 1m. They normally sit 1m above the deck surface but on decks which are higher than about 4m off the ground, it is recommended that one install a 1.2m high balustrade for safety reasons.

There are various designs from a standard vertical picket style balustrade to a criss cross pattern to diagonal slats and even deck boards installed horizontally. One should consider the reason for installing a wooden balustrade and then decide which one to opt for. For instance a vertical picket style is safe for high decks as they can’t be easily climbed and all gaps between pickets are less than 100mm so small children can’t fall through.

A criss cross balustrade has large openings and is not as safe.

Most balustrades have a capping on top of about 30mm x 100m allowing for a comfortable arm rest and a spot to place a drink.

Wooden Decks Durban and Cape Town

Click to enlarge

Contact us if you’re planning on doing any wooden balustrade work on 031 – 762 1795 or use the form provided below.

Wooden Bridges and Walkways

Wooden Decks Durban and Cape Town

Click to enlarge

Wooden bridges and walkways are popular in gardens that have small streams or where the garden necessitates a walkway in order to get from one place to another.

Instead of allowing a path to form from wear on the grass you can install a 1m or so wide walkway which is level and flat allowing you to move from one side to the other in comfort. They are often complimented by stairs or the occasional step up or down where the ground falls. They are often used to join one deck to another or a doorway to a deck.

Bridges can be spanned quite far without using supporting posts if balau is used. If posts are needed to support the bridge midway then H5 CCA treated posts can be used which can live in water for up to 30 years.

Please complete the form below if you require a quote and I will contact you or you can call on 031 – 762 1795.

Wooden Pergolas

Wooden Decks Durban and Cape Town

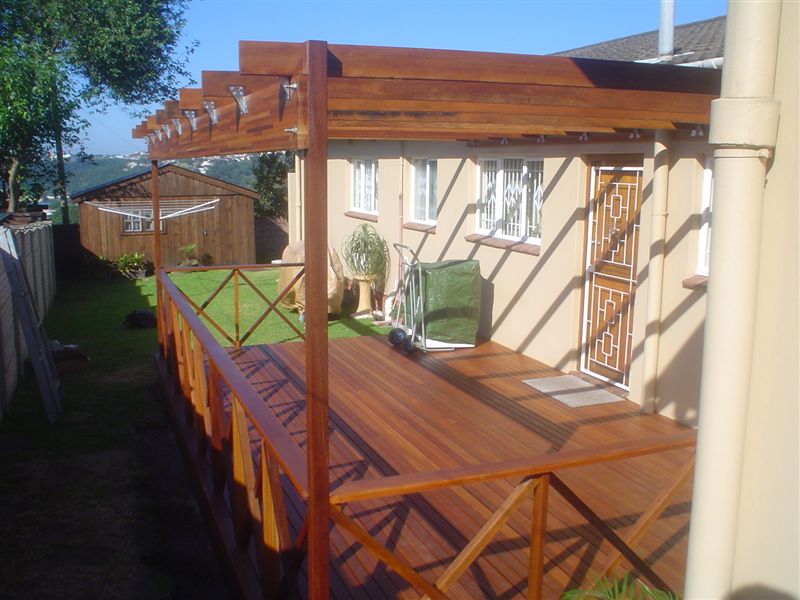

Deck and pergola

A wooden pergola is a structure above that is designed using timber beams, purlins and slats. It is largely decorative as it does not prevent rain and provides limited shade depending on how many slats are installed.

They are sometimes referred to as Sun Screens and can be built in such a way as to offer shade at certain times of the day by adding more or less slats to the top. There are a multitude of designs and they are only limited by ones imagination, and of course budget.

They can be attached to the main building and then supported by posts on the front edge or they can be free-standing with posts to ground. One can install roof sheeting above to keep the rain out, but often it is better to consider an aluminium awning for this application due to cost. A balau pergola is not the cheapest method, but does add a nice appealing underside to your covering.

Wooden pergolas can also be installed using thatching laths to give them a more rustic look and feel.

Should you require a quote on a pergola or any other timber construction for your home, please call us on 031 – 762 1795 or use the form below.

Wooden Screens and In Fills

Wooden screens Durban and Cape Town

Click to enlarge

Screens can be used for a multitude of purposes from screening out the view of the neighbours to enclosing an air conditioner so that it is not visible. They are sometimes concreted into the ground and can vary in height. Sometimes they are attached to boundary walls or the main building and some contain gates and hinged or removable lids for access to air conditioners, pool pumps, koi pond pumps and so on.

In fills are similar to screens but are normally installed between two brick columns on a boundary wall to create the effect of brick work and timber.

Most often the slats are installed horizontally with a 20mm gap between boards. This allows you to still be able to see through but screens out the view of others on the outside. This gap can however be changed for different applications. Double sided screens are also available so that both the inside and outside look the same.

To request a quote or for some advice please contact us on 031 – 762 1795 or use the form below to contact us.

Wooden Sun Decks Durban and Cape Town

Wooden decks Durban and Cape Town

Click to enlarge

A wooden sundeck is a valuable extension to your house in that it is relatively cost-effective whilst still increasing the living area and total coverage of your property. If properly installed and maintained it will give you many years of warmth and enjoyment and you will retain the value of it when ultimately selling your property. It is more cost-effective than brick, concrete or steel and with the trend moving towards sustainable and green building, a sun deck, sourced from sustainable forestry will retain its value for many years to come.

We generally use CCA treated pine in our substructures as it is a lot more cost-effective than using balau and we are still able to offer a 50 year supplier guarantee on the timber used in the substructure. This is provided we document the build with photos, retention records from the treatment plant, the date and invoices of when we bought the timber etc. As a rule we build in accordance with their criteria for the guarantee, but if a guarantee is required, we must be notified beforehand so that we can obtain these documents during our build. We use balau deck boards on the surface of the deck because they are infinitely more stable and do not warp or twist as much as balau. This is not as important in the substructure because it is largely covered from the sun and the pieces we use are a lot thicker so don’t warp or twist as much. Deck boards on the other hand take the full brunt of the sun and tend to warp more quickly. Also we source our balau at very competitive prices and can therefore build a deck at very competitive prices, even compared to using pine deck boards. Pine deck boards are much softer so one has to use twice as much wood negating the cost saving by using a cheaper timber. The structural pieces in balau are more expensive per cubic metre than pine so using a CCA treated substructure reduces the cost which we pass on to the client.

We use kalgard screws which are guaranteed by the supplier against rust for 25 years, we counter sink them and close the holes using an epoxy and saw dust mixture to match the colour, thus eliminating water ingression through the screw holes thereby reducing rot at the screw hole. They are sanded flat and we seal our decks using an oil based sealer which penetrates the timber rather than leaving a coating or film on the surface. Maintenance is therefore easy and inexpensive. You simply wipe clean the timber, clean any greasy marks off with turps and re-apply using brush, sponge, cloth or spray.

For some expert advice or a quote, please contact us on 031 – 762 1795 or complete the contact us form below.

Wooden Fencing in Durban

Wooden fencing can come in many different designs and they are limited only by ones imagination.  All our timber is sourced from companies who adhere to renewable forestry practices.  There are a few designs or types of wooden fencing that we install mentioned below.  However we can custom design wooden fences for you using best building practices and aesthetically pleasing ideas.

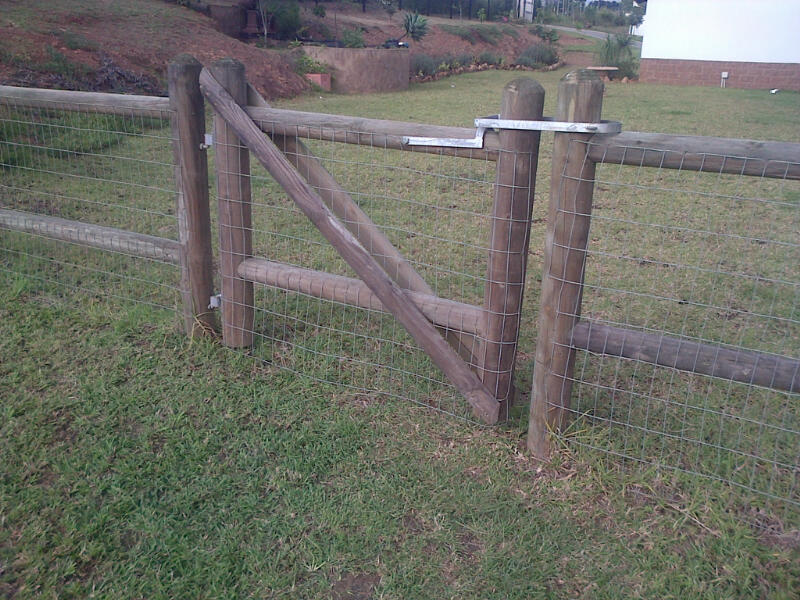

POST AND RAIL FENCING

Post and Rail Fencing Durban

Click to enlarge

Post and Rail Fencing is quite common and often found in areas where horses are kept. It has become more popular in recent times in suburban areas where some sort of fence needs to be in place without obscuring the view. They don’t provide much boundary protection as they are not that high, and therefore are more popular where the fence doesn’t need to protect the boundary.
They can be covered with weldmesh to provide more of a barrier. On their own they have large openings that people and small animals can climb through but they prevent larger animals from moving through such as horses. They are often installed in gardens of secure estates where the main purpose is not to keep people out. They come in various heights from 900mm to 1.8m.

The posts and rails are normally all H4 CCA Treated so are able to live in the ground in constant contact with wet soil without rotting for up to 30 years. The best timber to use here is pine sourced from the Cape as they have fewer tendencies to split. Because the post or rail is machined from a single log, they are naturally more prone to splitting, but if sourced from the Cape, then the splitting is limited.

Picket Fencing Durban

Click to enlarge

PICKET FENCING

Picket fencing is a natural alternative to other materials that can be used to provide a barrier at boundaries of properties to keep both humans and small animals in or out. They can be installed as a solid fence (i.e. no gaps between pickets) or they can be installed with a slat’s width between pickets.

The pickets are normally 22mm x 72mm and are installed using gum poles set every 2m or so with rails on top and bottom to which the pickets are attached. The tops can be square or they can be shaped into sharp pickets. Again these wooden fences can vary in height limited only by the length of slats available.

The gum poles are normally H4 CCA treated gum and the slats and rails are normally H3 CCA treated pine. Hence they can last for 30 to 50 years without rotting.

DROPPER FENCING

This type of wooden fencing is similar to picket fencing in that it is installed using gum poles of H4 CCA Treated Gum, rails and pickets, or droppers. The main difference being of course that this fence is made entirely from round poles and not machined timber. All of it is gum so they are a bit stronger and the chance of a dropper splitting is less than the chance of a slat breaking.

Again the tops of each dropper can be left square or they can be machined to spikes, thus providing some security for would be intruders and also varying the visual appeal of them.

WELD MESH

Weldmesh fencing Durban

Click to enlarge

A weldmesh fence is one of the cheapest form of fencing. It is installed using gum poles and stays on either end with intermediate posts every 2m or so. The height can vary depending on your requirements. Straining wire is then pulled taut between the main posts and weldmesh is bound on to that. Various heights are available and various grades of weld mesh are available. The actual wire that the weld mesh is made from varies in gauge and the rectangles that this wire forms can vary in length and width. All poles used are H4 CCA treated gum poles.

For a free no obligation quote on your wooden fencing requirements please give us a call on 031 – 762 1795 or use the contact us form below.

Indoor Wooden Balau Pool Deck Built in Estcourt

Here’s an indoor wooden balau pool deck we built in Estcourt KZN recently.  The client had been doing some renovations on his house and had enclosed the pool with brick walls and windows resulting in an indoor pool.  He wanted a wooden deck around it to finish it off nicely.

Careful consideration was needed to ensure that any water from the pool could quickly drain away so as not to remain wet beneath the deck boards for too long.  Of course with an outdoor deck any rain water or pool water evaporates quite quickly and isn’t of that much concern.  Being indoors however this water can get trapped below the deck for some time resulting in premature failure of the timber.  Although the timber is H3 CCA treated, and as such can live outdoors with periodic wetting, it cannot remain wet constantly.  H4 CCA Treated timber is more suitable for damp conditions such as constant contact with wet soil.  But a fair amount of water on an ongoing basis is not a good idea.

In this instance the builder had done a great job in creating a small fall on all four sides of the pool so that any water dripping or splashing on the deck would fall back into the pool rather than sit below the deck.

The job was relatively easy as there was very little difference in distance between the walls and the sides of the pool.  If the wall is not parallel to the pool then it will result in a wedged shaped deck board either up against the wall or the pool.  To counter this one must “fan” the deck boards by making the gaps on one side 1mm smaller than the gaps on the other side effectively gaining 1mm per deck board.  After 20 deck boards you will gain 20mm to make up any difference.

In fibre glass pools one might also find that the edges of the pool are not straight.  Run a fish line along it to see if it bulges in or out and find the straightest side to start your decking.  If it does bulge then you will need to overlap your deck board on the pool side slightly to cover that and keep the deck boards straight.

A simple single deck board as a fascia board on the inside of the pool finished it off nicely.  It was oiled with a deck oil and this deck will require very little maintenance or re-oiling as it is indoors and won’t get any sun.

Call us on 031 – 762 1795 for a free quote on your decking requirements.  We also supply and install balustrades, pergolas, walkways, bridges, jacuzzi cladding and pool pump covers.

Wooden Deck and Stairs Built in Umhlanga, Durban

This wooden deck we built for a client in Umhlanga, Durban was a suspended wooden deck about 2.8m off the ground. The idea was to make use of the flat concrete roof as a deck because the views from up there are of Durban Anchorage where ships anchor before proceeding to Durban port.  The views also extend all the way down the Golden Mile of Durban.

We didn’t want too many posts going to ground as the area beneath the wooden deck is still used as an outside patio. So we built our substructure using H4 CCA Treated pine in a 50 x 228 size rather than the normal 38 x 114. This way we could span our wooden joists of the deck across a longer distance without the need to support them below with another beam, and therefore posts. We attached the one end of the row of joists with a T joint to another 50 x 228 beams which carried the one side. The other side of each joist was hung in a custom-made galvanised steel joist hanger. The result was that our entire substructure was in one plane rather than having the joists sitting on top of a beam. It allowed us to keep the ceiling height of the deck higher, without having to increase the height of the top of the deck surface. These pine wooden joists were later sanded and sealed to make them look closer to the balau we installed on top of the pine.

The wire rope balustrade was fairly straight forward and we extended it past the deck on to the concrete slab flat roof.

The challenges in this wooden deck came in building the stairs. We had a fixed height to work with and a limited lateral distance in which we had fit all of our treads and risers whilst still keeping our risers and treads compliant. To add to this we had a window we had to pass to get down quick enough in our stair case in order to miss the window, plaster band and plumbing on the side of the house. The only way possible was to split the staircase into three flights with two landings where the flights turned at 90 degrees. We also had to split each landing into three windings in order to gain an extra two risers per landing in order to finish the stairs where they needed to finish. We adjusted the tread depth to shorten our treads and therefore total lateral distance to basically “sqwish” then all in. Normally we use 3 pieces of 30 x 102 balau for treads with two 5mm gaps between boards resulting a tread width of 316mm. We ripped the middle 30 x 102 to 50mm to reduce this lateral distance whilst still remaining compliant at 264mm but gaining some lateral distance in order to squeeze them all in. We finished it off with balau deck board cladding in order to cover all the pine structure. The job took time but it was well worth the wait. Stairs that look nice, work nicely and remain compliant.

It was all finished with an oil based sealer which penetrates the wood rather than drying on the surface.
