Used Balau Balustrade Material – Durban

Second hand or Used Balau Balustrade Material available for re-sale in Durban.

This balau balustrade has been removed from a site and replaced with another balustrade.  The balau wood is still very good as can be seen from the piece that has been machined.  It is still in the panels you see in the pics below but can be dismantled by you for use in another project.  Below is a link to a pdf file of a list of the pieces that make up the balustrade with sizes and quantities.  It is available to view on request.

Used Balau Wood Balustrade Durban

This slideshow requires JavaScript.

You can use the contact us form below to make contact with me or call me, Garrick, on 082 496 5444.

Wooden Balau Pergola Built in Plantations – Durban

This wooden balau pergola was built at Plantations in August 2016. We had custom-made galvanised steel base plates made up in order to secure the uprights to the existing paving. Because the uprights had to be installed on the edge of the paving we couldn’t dig and bury the post so we installed them into these base plates which were then fixed to the paving using sleeve anchors.

When designing a base plate for this application it is important to make the tube that will carry the upright post long enough in order to give it lateral support to stop the structure “racking”. Also the actual base must be big enough to be sturdy, but small enough so as to still be neat and not get in the way. We used a 90 x 90mm balau upright. The back row of uprights were fixed to the outside of the wall surrounding the entertainment area.

On the top we installed 30 x 102 as purlins which were spaced at 600 centres. I’ve found that spacing a 30 x 102 at 600mm centres works best from a structural point of view and a cost point of view. Obviously the closer the purlins are spaced the more expensive the pergola will be and one must be careful not to space them too far apart as it affects the stability of the structure and the visual appearance.

On top of that we installed 30 x 40 balau battens running perpendicular to the purlins at 120mm centres resulting in a gap between battens of 90mm being 3 times that of the batten itself. This works well in order to give enough broken shade without creating a completely closed effect on top. It also helps on the pocket by using 30 x 40 as opposed to 30 x 60mm.

Because of the existing chimney on one side of the area we had to cut purlins beams and battens in order to finish it neatly around this chimney whilst still making sure that all ends were fixed. If the ends are left unsecured they tend to twist over time.

These balau pergolas can be left un-oiled or oiled. If left un-oiled then they will eventually turn a silvery grey colour. If oiled they will remain slightly darker. It is not advisable to coat them with any other product other than an oil as it will eventually peel and flake and maintenance then becomes difficult and expensive. They can be pressure washed to remove dirt and grime that settles over time.

For a quote on your wooden balau pergolas, deck, walkways, balustrades, stairs and other timber works, please contact us on 031 – 762 1795 or use the contact us form below.

Balau Cladding on Ceiling – Umhlanga, Durban

Here’s some balau cladding work we did on the ceiling in the reception of a new office building in Umhlanga Rocks.

We used 19 x 30mm strips of balau which we ripped from a standard 19 x 68mm balau deck board. We started off with a treated pine frame or structure on to which we attached these balau strips. Being a ceiling it was important to ensure that our structure didn’t fail under the weight of the balau. Balau, being a very heavy and dense wood, can get quite heavy when suspended from a ceiling. Secure fixing points, and enough of them, are necessary to ensure it doesn’t fail.

It was very important to do this as neatly as possible as it is the reception area and as such is visible to all visitors as they enter the door. Care needs to be taken to ensure that gaps between boards are uniform and that the boards are parallel to each other. Also it is important to get the total structure to line up parallel with walls and corner of walls and slab above. It becomes unsightly when these don’t. At times the corners of walls may not be perfectly square and adjustments then need to be made so that the ends of the timber structure are at least parallel to the adjacent wall even if it means the structure itself isn’t square. Small adjustment can be made to the gaps between boards to compensate for this. 1mm on each end of a gap won’t be visible to the naked eye but will result in a 20mm “gain”, after 20 boards, on one side.

The ends of this suspended balau ceiling or bulk head needed to tie up with the boards to give it an appearance of being one solid, much wider piece of timber. It is often not possible to use a full-sized timber as it becomes too heavy on the structure, and the pocket. In these instances “build ups” are used to make it look like one solid wider piece of timber. The same principle is common in table tops where the top is only 22mm thick but is built up on the edges to give it the appearance of being 40mm thick. Care must be taken to do it neatly and it must be planned properly so that each piece fits into each other. There’s nothing more frustrating than getting to the end only to find you are 20mm out and should have set your first piece 20mm closer in.

Screw holes were filled with a clear epoxy mixed with saw dust and sanded flat.

This balau ceiling was left un-oiled to give it as much of a natural appearance as possible. It can be finished with an oil and the only product to use here is either Timberlife Satin Wood 28 Base or Woodoc Deck Dressing. This oil soaks into the timber. Most other products will dry on the surface and will eventually peel and flake.

For a quote on all of your balau timber works, decks, balustrades, walkways and stairs please use the contact form us below or contact us on 031 – 762 1795. If you prefer to build your own we supply the timber and other materials required through our sister company Ocean Timber Products (www.oceantimber.co.za). You can leave an enquiry there or on this page.

Wooden Bridges and Walkways

Wooden Decks Durban and Cape Town

Click to enlarge

Wooden bridges and walkways are popular in gardens that have small streams or where the garden necessitates a walkway in order to get from one place to another.

Instead of allowing a path to form from wear on the grass you can install a 1m or so wide walkway which is level and flat allowing you to move from one side to the other in comfort. They are often complimented by stairs or the occasional step up or down where the ground falls. They are often used to join one deck to another or a doorway to a deck.

Bridges can be spanned quite far without using supporting posts if balau is used. If posts are needed to support the bridge midway then H5 CCA treated posts can be used which can live in water for up to 30 years.

Please complete the form below if you require a quote and I will contact you or you can call on 031 – 762 1795.

Wooden Pergolas

Wooden Decks Durban and Cape Town

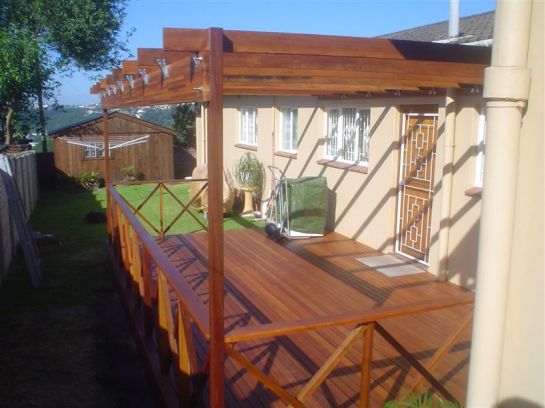

Deck and pergola

A wooden pergola is a structure above that is designed using timber beams, purlins and slats. It is largely decorative as it does not prevent rain and provides limited shade depending on how many slats are installed.

They are sometimes referred to as Sun Screens and can be built in such a way as to offer shade at certain times of the day by adding more or less slats to the top. There are a multitude of designs and they are only limited by ones imagination, and of course budget.

They can be attached to the main building and then supported by posts on the front edge or they can be free-standing with posts to ground. One can install roof sheeting above to keep the rain out, but often it is better to consider an aluminium awning for this application due to cost. A balau pergola is not the cheapest method, but does add a nice appealing underside to your covering.

Wooden pergolas can also be installed using thatching laths to give them a more rustic look and feel.

Should you require a quote on a pergola or any other timber construction for your home, please call us on 031 – 762 1795 or use the form below.

Wooden Balau Deck, Plantations, Hillcrest Durban

We built this wooden balau deck in Plantations Estate in Hillcrest Durban recently for a client.

We needed to excavate a few hundred mm down in order to give us enough space in which to install our timber substructure. It is quite important to remove enough soil when building low-level wooden decks on top of soil. This is to give the deck enough space between the bottom of the timber substructure and the top of the soil so that the timber remains relatively dry. It is very important not to allow the timber to touch the wet soil unless it is H4 CCA Treated. CCA Treatment has various Hazard Classifications and each one is associated with specific applications. There are various articles on this site on the topic. You can find them by searching CCA in the search box at the top right of the screen. As a quick summary, H3 is good to go outdoors with periodic wetting and H4 is good to live in the ground in constant contact with wet soil. This is all according to www.sawpa.co.za. So if you are using H3 CCA Treated make sure there is sufficient space below to ensure the wood doesn’t touch the soil. If you are using H4 then it is ok to bury the timber in the ground.

Having said that the more space below the deck the better to allow air movement and keep as much moisture away from the balau deck boards which are not treated. Although balau is a very hardy wood and can withstand a certain amount of wetting, the more moisture around, the quicker the wood will deteriorate.

People often ask me about treating the pine before it goes in the ground or before we install deck boards above. There is no need. The pine is all pressure treated to the correct Hazard Classification and therefore no more treatment or sealing is necessary. In fact there is argument that coating it with, for instance bituseal, will in fact allow water in but won’t allow it out. Water will find a way in. A small stone scratching the bituseal off during installation, or a bump here and there, will allow water in and it won’t easily find its way out. Leaving it so the water can flow in and out quickly will result in a drier piece of timber for longer. There’s no need to do anything to your CCA treated timber.

Balau deck boards are then installed on the surface simply because balau is more stable and won’t crack, twist or warp as easily as pine. The cost difference between pine deck boards and balau deck boards is minimal, if anything. If you use pine deck boards you will use twice as much wood and although pine is relatively inexpensive, for deck boards you will need to use S7 (semi clears). The cost of semi clears negates any saving between pine and balau. Stick with balau as a deck board. It’s very stable. As a substructure, it is not cost-effective to use balau and S5 (industrial grade) pine can be used there at a much lower cost that both balau and semi clear pine.

This deck was left to grey naturally by leaving it as is. No oil, no sealer, nothing. Just leave it and periodically pressure wash it to remove any grime or dirt. If you choose to oil your deck then use an oil. Don’t use a product that will dry on the surface. If it dries it will peel and flake.

For a no obligation quote on building your wooden deck please use the contact us form below or you can contact us on 031 – 762 1795. We also offer a DIY service. We will supply you with all the correct materials you need to build your own deck and can advise on time-saving tips and tricks as well as recommended building practices.
