Wooden Deck Waterfall September 2018

Wooden Deck Durban Waterfall

The video here shows the deck we built from the neighbours yard with the mist rolling down the hill in the early morning. Besides being an incredible sight to see one can see how this garden lends itself to a wooden deck.

The deck was built square off the house towards the boundary fence which over looks The Valley of a Thousand Hills near the Hillcrest area. On either side at the back of the deck there are stairs that lead back to each side of the house. The deck totalled about 80 to 90 square metres.

It was built the standard way we build with a treated pine sub structure and 19 x 68mm yellow balau deck boards. There is a difference between red and yellow balau deck boards. We stock only yellow balau deck boards and use only yellow balau in the building of our decks. The wooden balustrade was our standard vertical picket style balustrade, which is the safest at heights like these, as there are no gaps that exceed 100mm and is therefore compliant in terms of SANS building regulations. The balustrade is at a height of 1.0m. Once you start going higher than about 2 stories it is advisable to build the balustrade at 1.2m for safety reasons.

Stairs can either be built as open risers or closed risers. As open risers one can see through them whereas closed risers the underside of the deck is not visible. From a cost point of view they are the same so the choice would be made on whether or not you want to look below at the structure or not.

All our decks are finished by filling the counter sunk screw holes with a clear epoxy and saw dust mixture and then sanding flat before oiling with a decking oil. There is an option to leave the deck unoiled and to allow it to weather naturally and turn a grey colour.

In the still pic one can how effective lighting is below the capping to illuminate the deck yet not shine in your eyes. These are easy to install in that they are glued below the capping. They are LED lights so very little power is used to illuminate the deck surface.

For a no obligation quote on your sun deck, pool deck, timber balustrades and other timber related outdoor or indoor construction, please contact us on 031 – 762 1795 or use the contact form below.

Used Balau Balustrade Material – Durban

Second hand or Used Balau Balustrade Material available for re-sale in Durban.

This balau balustrade has been removed from a site and replaced with another balustrade.  The balau wood is still very good as can be seen from the piece that has been machined.  It is still in the panels you see in the pics below but can be dismantled by you for use in another project.  Below is a link to a pdf file of a list of the pieces that make up the balustrade with sizes and quantities.  It is available to view on request.

Used Balau Wood Balustrade Durban

This slideshow requires JavaScript.

You can use the contact us form below to make contact with me or call me, Garrick, on 082 496 5444.

Wooden balau Deck Built in Umkomaas – KZN South Coast

This wooden deck built in Umkomaas on the South Coast of Kwa-Zulu Natal turned into a very nice job with many extras and a happy client who paid timeously. What a pleasure.

We removed and dumped an existing pine deck that had started to show signs of failure in the deck boards themselves. The structure was still ok as it had been built using H3 CCA Treated pine which is suitable for outdoors for a minimum of 50 years as per www.sawpa.co.za. It was the deck boards that had started to rot at the screw hole due to water sitting in the screw hole for long periods of time. It is very important to firstly close that screw hole at the time of building the deck and then to maintain them going forward to stop any water getting into the screw hole. Water will travel very quickly along the end grain of wood and this screw hole provides an ideal point of entry for water. They are simply filled with a clear epoxy mixed with saw dust to match the colour and then sanded flat before sealing or oiling the deck.

Once we had a clear slate we built a new deck using balau deck boards. We changed the design a few times as we built to accommodate the clients requirements. We tried to create a deck that would flow nicely from one level to the other. The top deck was built flush with the house and then we built steps at a 45 degree angle to gain access to the lower deck around the pool which extended along the front of the lower level sliding doors.

We included a curved front on the upper deck to break the straight lines and then clad that fascia as it was very visible when driving up the driveway. We normally include two deck boards as a fascia to the front edge of a deck to hide the structure below and finish it off neatly. In this instance we added four deck boards on the curve because the driveway is a lot lower then the deck and when driving up the driveway the underside of the deck was the first thing you see when entering the property. The client may still need to add planters with some plants in to completely cover that structure but the 4 deck boards give it a nice broad fascia which hides a lot of the structure.

The stairs were challenging. Originally they were to be curved risers and treads which would have meant either cutting deck boards at an angle and laying them straight or trying to bend the deck boards. The risers would have been easy enough by bending a deck board around the arc, but the treads would have been a bit more difficult because it would have meant bending the board through its width (not thickness). The centre of the circle, was off set to the corner of the deck or the top of the stairs and the centre of the circle occurred in the pool. So all in all not an easy task. Because the arc itself was quite gentle you would not have really noticed that it was curved so we opted for a straight edge to our risers and treads. Much easier and less problems going forward with deck boards trying to return to their original straight position. Often less is more.

For a free no obligation quote on your wooden deck, pergola, stairs and other timber works please call us on 031 – 762 1795 or use the contact us form below.

Wooden Deck and Stairs Built in Umhlanga, Durban

This wooden deck we built for a client in Umhlanga, Durban was a suspended wooden deck about 2.8m off the ground. The idea was to make use of the flat concrete roof as a deck because the views from up there are of Durban Anchorage where ships anchor before proceeding to Durban port.  The views also extend all the way down the Golden Mile of Durban.

We didn’t want too many posts going to ground as the area beneath the wooden deck is still used as an outside patio. So we built our substructure using H4 CCA Treated pine in a 50 x 228 size rather than the normal 38 x 114. This way we could span our wooden joists of the deck across a longer distance without the need to support them below with another beam, and therefore posts. We attached the one end of the row of joists with a T joint to another 50 x 228 beams which carried the one side. The other side of each joist was hung in a custom-made galvanised steel joist hanger. The result was that our entire substructure was in one plane rather than having the joists sitting on top of a beam. It allowed us to keep the ceiling height of the deck higher, without having to increase the height of the top of the deck surface. These pine wooden joists were later sanded and sealed to make them look closer to the balau we installed on top of the pine.

The wire rope balustrade was fairly straight forward and we extended it past the deck on to the concrete slab flat roof.

The challenges in this wooden deck came in building the stairs. We had a fixed height to work with and a limited lateral distance in which we had fit all of our treads and risers whilst still keeping our risers and treads compliant. To add to this we had a window we had to pass to get down quick enough in our stair case in order to miss the window, plaster band and plumbing on the side of the house. The only way possible was to split the staircase into three flights with two landings where the flights turned at 90 degrees. We also had to split each landing into three windings in order to gain an extra two risers per landing in order to finish the stairs where they needed to finish. We adjusted the tread depth to shorten our treads and therefore total lateral distance to basically “sqwish” then all in. Normally we use 3 pieces of 30 x 102 balau for treads with two 5mm gaps between boards resulting a tread width of 316mm. We ripped the middle 30 x 102 to 50mm to reduce this lateral distance whilst still remaining compliant at 264mm but gaining some lateral distance in order to squeeze them all in. We finished it off with balau deck board cladding in order to cover all the pine structure. The job took time but it was well worth the wait. Stairs that look nice, work nicely and remain compliant.

It was all finished with an oil based sealer which penetrates the wood rather than drying on the surface.

Contact us for quotes on your wooden decking, stairs, balustrade and other outdoor timber construction. You can call us on 031 – 762 1795 or you can use the contact us form below.

Balau Timber Stairs Built in Umhlanga Rocks, Durban

These balau timber stairs that we built in Umhlanga are actually temporary stairs which will be removed at some point. They were built in order to gain access up the bank to a converted container that has been placed at the top. It is for a new development at Umhlanga Ridge and the converted container will be used as a sales office to sell the units. Their life span will depend on how long it takes to sell all the units after which the container and stairs will be removed.

We nevertheless used balau as we needed to create a very upmarket feel as this development is targeted at the high-end market.

Initially we were going to build a platform or landing at the bottom, one at the top and one mid way to break the stairs into two flights. However the total distance did not require that and we settled for a landing at the top and one at the bottom. Normally if the flight of stairs is quite long one needs to split them into two flights with a landing mid way. This is to be compliant with National Building Regulations. It is stipulated for safety reasons because a very long flight of stairs becomes dangerous if not split into two flights.

It is a bit more difficult to build two flights with a landing mid way because one needs to first build your top and bottom landings and then work out exactly at what height the middle landing needs to be. This is so that the two flights can be of equal distance and the risers of the first flight can be equal to the risers of the second flight. If the middle landing is not placed exactly in the middle of the total height, the risers of one flight will need to be different to that of the other flight in order to close the gap between landings. It can also result in a different number of risers.

We used balau stingers, cleats and treads. We left the risers open and installed a balustrade down both sides of the stairs for obvious reasons. The balustrade was also full balau and installed in a vertical picket style with a 102mm capping on top.

The stairs were 1m wide which allows for two people to occasionally walk up and down at the same time. I say occasionally because if it was a busy stair case and people were walking both up and down at the same time regularly then one would need to make the stairs 1.5m wide with a balustrade down both sides. There are other building regulations that stipulate when a hand rail is needed in the middle of the stairs case once it reaches a certain width.

For a free no obligation quote on wooden stairs, decks, balustrades and other outdoor timber construction please call us on 031 – 762 1795 or use the contact us form below.

Wooden Pool Deck Building in Summerveld, Durban

We built this wooden pool deck in Summerveld, Durban in July 2015. There were various challenges in this wooden pool deck build which tested our skills somewhat.

Firstly the ground in Summerveld is very rocky, in fact in some areas it is just one large rock, and when digging you are actually making a small hole in a large piece of rock. There were 21 holes in total on this wooden pool deck so digging was slow and costly.

From the pics you can also see that the edge rim of the pool is a rock feature so it is not level or flat and we had to try to get our deck height to a comfortable level for access from the rock rim of the pool on to the wooden pool deck. We also had to then try to conceal the gap between rock and deck as far as possible and as neatly as possible. In some areas it took a full deck board as a fascia and in other areas it was tapered down to a half width deck board.

We ran deck boards perpendicular to the pool to avoid having long thin slivers of deck board on the pool side. When we started out the deck was planned to be half the finished size. As it took shape it was decided to extend it to its final measurements which was a double-edged sword for us as we had to dig even more holes through the rock but it increased our surface area and therefore our earnings. So we put on our big boy pants and carried on. The ends result was that the deck now extends past the front of the house so that when you are standing on the front you can see all the way along the front of the house.

A pool pump cover was added, a full balustrade around the whole deck and we clad the open vertical gaps so that one cannot see below the deck.

In one of the pics above you can see how we have returned the balustrade at 90 degrees on the first corner. This is to give the long run of balustrade perpendicular to it more strength. Long straight runs of balustrade can often become quite “wobbly” and this corner gives it good strength.

We opened a gap in the existing post and rail fence and built stairs from the garden at house level to the pool with a hinged gate and latch. Because of the angle of the stairs, and to prevent digging too deep into the ground at the top of the stairs, we built a small landing.

A short free-standing balustrade was added along the electric fence to provide some protection from the electric fence when accessing the lower garden on the right hand side of the deck.

For a free no obligation quote on your wooden pool deck or other outdoor timber structures please call us on 031 – 762 1795 or use the contact us form below.

Balustrades on Wooden Deck, Durban

There are a number of different types of wooden balustrades one can have built for your wooden deck. We offer this product in both Durban and Cape Town. I will run through a few options in this article and will mention the pros and cons of each one.

There is a slide show above which shows the different options. I do not have fancy names for them such as Colonial, or Mediterranean. I call them simply what they are.

The vertical picket wooden balustrades are probably the only ones that are compliant in terms of building regulations as none of the gaps are larger than 100mm. They are generally made from 60 x 60 balau upright posts attached to the fascia beam or first or last joist in a wooden deck. We use the 60 x 60 upright post on the corners and in the middle of a long run. All other intermediary posts are 30 x 60 balau. There is a top rail and a bottom rail onto which the vertical pickets are attached. Rails are generally 30 x 40 and pickets are 20 x 30 balau. The bottom rail is set at 100mm off the deck surface and the top rail can be set either 100mm below the capping, or directly beneath the capping. The capping is generally made from a 30 x 102 balau giving it ample width to place a glass or lean comfortably on it. The capping is then routed to give the corners a rounded edge. The distance between upright posts is determined by the total length of the wooden balustrade resulting in equal spaces between uprights. Pickets too are set at equal spaces between uprights. This is the most affordable design of balustrade as it is fairly simple to construct.

The Criss Cross design can come in two main designs. A simple criss cross between uprights with a capping on top or a criss cross between uprights with a box in the middle of the criss cross. The two pieces of timber that are used for the criss cross are normally notched half way through each piece at an angle so that they fit snugly into each other instead of lapping over each other. The box is also set inside the two criss cross pieces so that the whole balustrade is in line rather than pieces over lapping each other. This design can be expensive as the method to construct is time-consuming and the pieces of timber are generally larger than the vertical picket design. It can also be changed to result in many different patterns.

The wire rope design is particularity useful when you don’t want to obscure the view when seated. A balustrade at 1m high will block the view in a seated position for most average height people. The wire rope is 4mm in diameter so it is less visible than say a 30mm piece of timber. The posts are generally also 60 x 60 and 30 x 60 uprights with a capping of 30 x 102 balau on top. The wire rope is set at 100mm intervals but can be opened wider as they are not tensioned to guitar string tension. As such they are not suitable if you have small kids and anything over 1m from the deck to ground level. The swages, turn buckles and wire rope are all marine grade stainless steel.

For a free no obligation quote on your timber balustrade requirements please call us on 031 – 762 1795 or use the contact us form below.

Wooden Sun Decks and Wire Rope Balustrades

Wooden Balau Deck with Wire Rope BalustradeWooden deck with wire rope balustradeWooden deck with wire rope balustradeA wire rope balustrade on a wooden sun deck, as pictured in this article, has a few pros and cons to it which I will discuss below. I will also describe the method used to install wire rope balustrades and what to be careful of to ensure that the job runs smoothly. If you don’t feel like doing it yourself, or don’t have the right tools or time, then scroll to the bottom and complete the contact us form below. I will contact you and we can take the task off your hands. Alternatively call us on 031 – 762 1795. We are Durban based.

Firstly one should choose the correct wire rope to use. We use the 4mm marine grade stainless steel wire rope with button heads. One can also get the 5mm wire rope but I have found that that often contains one rogue strand which will tarnish over time and spoil the look of your balustrade. The 4mm wire rope does not bend as easily as the others so where you get to a 90° bend you will need to terminate your wire rope with a button head and start again on the next run. The 4mm wire rope can bend around gentler curves quite easily. It is just the 90° bends that require a new run.

We start by installing our wooden, normally balau, uprights and these can be anything from a 30 x 60, 40 x 60 or 60 x 60. Obviously the 60 x 60 is better as it is more solid and stable, but it unavoidably carries a higher price tag. A 40 x 60 works very well, but the 30 x 60 can do the job just as well if installed properly. Now install your capping on the top to hold the whole lot together while you install your wire rope.

There are various methods of securing your wire rope. We use the button heads as opposed to turnbuckles. A hole is drilled, to a diameter slightly bigger than the button head, in the wooden upright and the wire rope is threaded through it so that the tag end is protruding to the outside of the balustrade. One side of the button head is then inserted over the wire rope and crimped using a special crimping tool. The crimping tool looks very similar to a large bolt cutter with a head that has been adapted to accept the button head and crimp it to the right size to hold the wire rope without damaging it.

Now cut a length of wire rope to slightly more than is required. Remember think twice, cut once as it is always easier to cut more off then to add more on once it has been cut too short. Now all your holes need to be drilled in all the other upright posts. Measure you spaces out accurately so that your wire rope will run parallel to the capping on the top and the wooden deck on the bottom. When drilling through a piece of wood it is easy to hold the drill slightly skew resulting in the drill bit exiting the wood at an angle which will result in the exit hole not being in the place it should be. So drill half way from one side and then drill from the other side to get your entry and exit holes perfectly lined up. It doesn’t matter if the middle of your hole is slightly skew because you can’t see it and it is not enough to impede the path of the wire rope. Thread the other un crimped end of the wire rope through all your holes in your uprights until you get to the end.

Wooden deck with wire rope balustradeNow take the other button head with the thread on it and measure, very carefully, where you need to cut your wire rope. You will need to cut it with a thin cutting disk on a baby grinder so as to get a nice clean-cut. If you cut it too long you won’t be able to tension it and too short, well start again from the beginning. So cut and check before crimping the other end. The second button head will be inserted through the hole from the back and the wire rope inserted into it from the front and crimped. Make sure you have your thread to its longest position so that you still have thread to use to tension it. Now tension it, but do not over tighten it. It is not a guitar string and only needs to be tight enough to be visibly straight. Over tightening it will result in the end wooden uprights bowing, or even failing.

Pros of Wire Rope Balustrades

• Does not interfere in your vision when seated and looking through the balustrade
• Adds a second material, other than timber, for a clean minimalist look and feel
• Marine grade stainless will last a life time

Cons of Wire Rope Balustrades

• Does not offer as much protection from objects or people falling through the strands as timber does
• If installed incorrectly can look terrible
• Can detract from the timber look and feel

Good luck in installing your wire rope balustrade. I hope this article has helped. If you’re not up to it, please complete the form below, or contact us on 031 – 762 1795 and we will gladly quote you to do the task for you. We are Durban based and work throughout KZN.

Wooden Sun Decks Durban – Westville

Wooden Sun Decks Durban

Click to enlarge

Wooden Sun Decks Durban

Click to enlarge

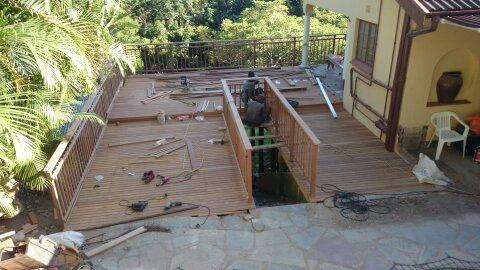

This wooden sun deck we built in Westville Durban was designed to try to maximise outdoor space. The house we built it at had very little outdoor space as it was situated on a steep plot. You can see from the pics that before we built the wooden sun deck, the garden had only a small area of about 1m around the pool on the front side of the garden. There was then a steep concrete staircase down the side of the house going to the back garden. The back garden was however not very usable as it was far from any entrance to the house. So the idea here was to build a wooden sun deck that extended from the slasto of the pool area to meet the far side of the house. It was about 48m² in total floor area and was surrounded by a wooden balustrade in a picket design. We left the existing concrete stair case in place and built the wooden sun deck so that one could use this existing stair case. Hence the U Shaped deck.

Wooden Sun Decks Durban

Click to enlarge

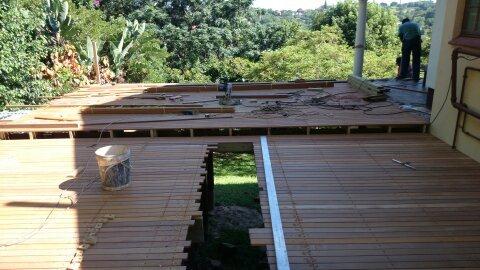

We also had to split the wooden sun deck into two levels as the area by the pool was a little lower than the area where it met the existing concrete deck. So we had a split level deck with a small step up of about 180mm. 180mm is always a good step height or riser height.

Wooden Sun Decks Durban

Click to enlarge

The posts beneath had also been lined up so as to avoid being placed in the middle of the stair case. Even though the outer posts were some distance from the bottom of the stairs, if we had placed them where they would normally have gone (i.e. equal distances from either end) then it would have spoilt the line of sight as one was walking down the stairs. So they were shifted slightly left and right to miss the line of the stairs.

We also had a garden shed beneath the front edge of the deck so we had to build around that which had had a new roof built on it and waterproofed. When building over waterproofed structures one cannot drill through the torch on as it will results in leaks beneath. You need to then build on either side of it or use thicker beams and joists to be able to span them further apart.

Wooden Sun Decks Durban

Click to enlarge

Wooden Sun Decks Durban

Click to enlarge

In the pics on this article you can also see the horse shoes we used to support the beams on the walls. Instead of dropping posts to ground you can simply attach the beam to the wall by cutting a horse shoe using the same timber as the beams. The bottoms are always cut to 45° for both neatness and to avoid having sharp corners jutting out. This also applies to the ends of main beams.

We treated our cut ends with Permaseal, an approved end sealer used to stop rot or insect damage to cut ends of CCA treated timber. This was necessary in order for us to activate the 50 year guarantee that the supplier provides on the CCA Treated pine substructure. There are a few articles on this blog that go into detail about this and what is required in order to activate your 50 year guarantee.

For a free no obligation quote on wooden sun decks, wooden floors or wooden fences, please contact us on 031 – 762 1795 or use the contact us form below.



Wooden Stair Case Build Durban

Wooden stair builder

Click to enlarge

This wooden stair case build by The Wood Joint in Durban was a tricky one. The client was a committee member on the body corporate for a small block of flats in Durban. There were about 4 units in the block and the existing steel fire escape had rusted to a point where it was unsafe. So first we had to remove the steel structure. With a little help from my friends, we came in and chemical anchored stainless eyes into the wall on both sides above the steel platform you see in the pics. From there we rigged up some climbing equipment to be safe and started cutting sections out of the steel structure and lowering them slowly to the ground. We had to cut small sections as the steel was 10mm thick and we didn’t want to damage the walls, windows or doors on the way down. We managed to get most of it down in one day with a small piece remaining for day two. We battled slightly in getting the main support off as the sewage pipes had been installed after the steel so we had to cut the steel out around the pipes so as not to damage the pipes. In removing it we inadvertently damaged a corner of the wall as the rawl bolts there were quite large, rusted and pretty much part of the building by now. We patched that using structural grout which was hard and strong enough to support our main beam to.

Wooden stair builder

Click to enlarge

With the steel gone, we set out to build a wooden stair case and landing that could act as a fire escape. The small landing part was easier enough and we canter levered it so as to keep our posts out of the way below for parking. In these smaller blocks of flats in Durban space is very limited so posts need to be kept well out the way of parking space. Because we were canter levering it we needed to use 30 x 140 joists of balau rather than our normal 30 x 102 joists.

The stringers for the stairs were also tricky as we had to follow the original line of the stringers because there was a window beneath that we couldn’t cover and we could only protrude to the end of the wall without obstructing the driveway. This resulted in our stringers being placed at 45 degrees which resulted in our risers being of equal length to our runs or treads. It is not ideal as it makes the stairs very steep but we had no option due to space and height. We were a total of about 4m in the air to the landing.

The treads went on alright, the balustrade too and we had to join the stringer on the outside with two independent posts to ground to support it as the timber we could get wasn’t long enough to run the full length of the stringer.

Wooden stair builder

Click to enlarge

We went back there a year or two later as one of the treads had popped a screw. Sometimes the timber moves more than one wants it to and breaks the screw off. We do however put additional back up screws in each piece we secure so they are safe in the event that one screw does break.

For a free no obligations quote on wooden stairs or any other outdoor timber construction please complete the form below or you can call us on 031 – 762 1795.

Wooden stair builder

Click to enlarge

Wooden stair builder

Click to enlarge
