Wooden Pergola built in Cotswold Downs Hillcrest

Posted on by
Reply

This wooden pergola was built in the common public area of Cotswold Downs in Hillcrest. The original one had been damaged due to high winds. It was built using H3 CCA Treated pine. Being H3 CCA treated it has a minimum life span outdoors, in the weather, of 50 years. See here for an article on the correct treatment of pine.

This slideshow requires JavaScript.

We built concrete bases with galvanised steel drag plates set in the concrete. The ground had a slight fall to it so each plinth was set and cast level with each other. The timber sits out the concrete fixed to the drag plates. This should limit the premature rot of the timber and resulted in H3 being used as opposed to H4.

We finished this one with a mineral based Rystix in Imbuia (black) at the client’s request.

For a free no obligation quote on your pergola, wooden sun decks, stairs and balustrades please contact me Garrick Dunstan on 082 496 5444 or use the contact us form below.

Wooden Yellow Balau Deck – Kloof, Durban KZN

Posted on by
Reply
Low level wooden deck
Wooden Pergola

Here’s another wooden deck we built in Kloof, Durban which is similar to one we built in Hawaan Forest estate a few years ago. It has a fire pit with a U Shaped bench which double up as steps around it. These steps were designed so that they were wide enough to sit around the fire and with a riser that is not too steep to climb.

The substructure or frame was the normal H3 and H4 CCA Treated S5 pine we use. All our decks are built with an S5, H3 and H4 treated pine substructure. S5 refers to the grade of pine which is commonly called industrial grade. It is graded as such based on the number of knots per square metre. S5 is SABS industrial grade and has been passed by SABS to be used in construction. It doesn’t however make a very good deck board as there are too many knots which are not only unsightly but also they can become dislodged leaving a hole in the deck board. H3 and H4 CCA Treated refers to the hazard classification of the treatment as set out by The Wood Preservers Association of South Africa. Each H classification has a specific application and provided the correct H classified timber is used, the life span of the timber can be many more than 50 years.

The deck boards that went on top of the substructure were 19 x 68mm yellow balau deck boards. The other option for deck boards is 19 x 90mm yellow balau deck boards but they do carry a surcharge as they cost more per square metre than the 68mm wide boards.

There are two types of balau readily available in South Africa. Yellow balau and red balau. Yellow balau is more common and is superior to red balau. What we are seeing in South Africa nowadays which is called red balau is a lot more porous and softer and as such will absorb more water and rot more quickly. We only stock and use yellow balau.

This project in Kloof also included a pergola. What we have found to be most cost effective in pergolas is to use a 90 x 90 square balau post, 30 x 215 balau beam and 30 x 102 balau purlins or trusses at about 600 centres. This spec gives the pergola enough timber to be attractive and serve its purpose whilst still keeping costs down. With this particular job we also installed extra battens on top of the purlins. We used 30 x 40 balau for this purpose which again keeps costs down whilst still providing enough timber to keep it looking good and to do it’s job. Other options for battens on pergolas are to use a 30mm wide strip of balau with a 30mm or 60mm gap between. This provides more shade but of course comes with a higher price tag because more timber is being used.

The timber was sanded and sealed with an oil based sealer we use which doesn’t dry on the surface of the wood so it cannot peel and flake. Unlike other coatings which dry on the surface. These tend to peel and flake.

For a free no obligation quote on your wooden deck, pergola, balustrade and stairs requirements please contact us on 082 496 5444 or use the contact us form below.

Balau Ceiling Cladding at Hillcrest Corner, Durban

Posted on by
Reply
Hillcrest Corner – Deck and Ceiling
Hillcrest Corner – Deck and Ceiling
Hillcrest Corner – Deck and Ceiling
Hillcrest Corner – Deck and Ceiling
Hillcrest Corner – Deck and Ceiling

The Owen Kemp Building at Hillcrest Corner, is being refurbished and there are two restaurants coming in to the space which was Mr Price. The entire shop is being revamped and changed to accommodate these two restaurants and we have been appointed to attend to the balau ceiling work, decking and cladding of various entrance ways and some screens. This article will deal with the ceiling work.

A steel fabrication company has installed a steel structure on top of which they have installed roofing material. Our job is to now to clad the underside of the steel purlins and battens using 19 x 68mm balau deck boards with a 90mm gap which will accommodate flush mount LED lights. One can’t attach the balau deck boards directly to the steel structure so we’ve built a mini timber structure on to which we will attach the balau planks. We needed to build it so that the bottom of these boards were flush to the bottom of each I beam as the I beam itself will remain exposed and visible. Cleats and battens were attached to the steel and then painted to match the colour of the steel itself. Deck boards were then fixed to these battens with a 90mm gap. The gaps of 90mm are to accommodate a bracket which will be used to fix LED lights which will be flush with the bottom of our boards. We installed the brackets once we had already installed the boards to make it easier to get the alignment right. We drilled through the board and counter sunk a nut and bolt which will be filled with epoxy to cover the bolt head. The lighting company then installed their lights into those purpose made brackets.

On the long straight section the boards were relatively easy to install as they followed the profile of the roof sheeting which was parallel to the I beams supporting them. At the corner the I beams no longer run parallel to the profile of the roof sheeting so we installed our boards still parallel to the profile of the roof sheeting but mitred at an angle to the I beam resulting in a very neat finish. The difficulty in this type of job is drilling through the 12mm I beams to fix the cleats securely. Also the height slows the job down as one is working above one’s head on scaffolding.

On the screens we need to fix a cleat on the outside of the building between screen steel frame and balustrade. We drilled form the inside using a magnetic drill as the wall of the steel was about 8mm and it was virtually impossible to drill from the outside through 8mm of steel. Still there were at least 300 holes to drill in this manner. It is much easier to install wood on to steel if the steel has been pre drilled before fabrication.

There is still a deck to come below this ceiling and screens at various points. I will follow up with a separate article on these other items.

For a quote on your sun deck or other balau timber cladding or screening please contact us on 082 496 5444 or use the contact us form below.

Wooden Balau Pergola Built in Plantations – Durban

Posted on by
Reply
Wooden Pergola
Balau Pergola

This wooden balau pergola was built at Plantations in August 2016. We had custom-made galvanised steel base plates made up in order to secure the uprights to the existing paving. Because the uprights had to be installed on the edge of the paving we couldn’t dig and bury the post so we installed them into these base plates which were then fixed to the paving using sleeve anchors.

When designing a base plate for this application it is important to make the tube that will carry the upright post long enough in order to give it lateral support to stop the structure “racking”. Also the actual base must be big enough to be sturdy, but small enough so as to still be neat and not get in the way. We used a 90 x 90mm balau upright. The back row of uprights were fixed to the outside of the wall surrounding the entertainment area.

On the top we installed 30 x 102 as purlins which were spaced at 600 centres. I’ve found that spacing a 30 x 102 at 600mm centres works best from a structural point of view and a cost point of view. Obviously the closer the purlins are spaced the more expensive the pergola will be and one must be careful not to space them too far apart as it affects the stability of the structure and the visual appearance.

On top of that we installed 30 x 40 balau battens running perpendicular to the purlins at 120mm centres resulting in a gap between battens of 90mm being 3 times that of the batten itself. This works well in order to give enough broken shade without creating a completely closed effect on top. It also helps on the pocket by using 30 x 40 as opposed to 30 x 60mm.

Because of the existing chimney on one side of the area we had to cut purlins beams and battens in order to finish it neatly around this chimney whilst still making sure that all ends were fixed. If the ends are left unsecured they tend to twist over time.

These balau pergolas can be left un-oiled or oiled. If left un-oiled then they will eventually turn a silvery grey colour. If oiled they will remain slightly darker. It is not advisable to coat them with any other product other than an oil as it will eventually peel and flake and maintenance then becomes difficult and expensive. They can be pressure washed to remove dirt and grime that settles over time.

For a quote on your wooden balau pergolas, deck, walkways, balustrades, stairs and other timber works, please contact us on 082 496 5444 or use the contact us form below.

Wooden Pergolas

Posted on by
Reply
Wooden Decks Durban and Cape Town

Deck and pergola

A wooden pergola is a structure above that is designed using timber beams, purlins and slats. It is largely decorative as it does not prevent rain and provides limited shade depending on how many slats are installed.

They are sometimes referred to as Sun Screens and can be built in such a way as to offer shade at certain times of the day by adding more or less slats to the top. There are a multitude of designs and they are only limited by ones imagination, and of course budget.

They can be attached to the main building and then supported by posts on the front edge or they can be free-standing with posts to ground. One can install roof sheeting above to keep the rain out, but often it is better to consider an aluminium awning for this application due to cost. A balau pergola is not the cheapest method, but does add a nice appealing underside to your covering.

Wooden pergolas can also be installed using thatching laths to give them a more rustic look and feel.

Should you require a quote on a pergola or any other timber construction for your home, please call us on 082 496 5444 or use the form below.

Galvanised Steel and Balau Pergola, Durban

Posted on by
Reply
Wood and Steel Pergola

Here’s a steel and timber pergola we installed shortly before shut down in 2015 in Gateway Umhlanga Rocks Durban. It was for a new building called 1 on Lunar neat Gateway Hospital.

Due to the size of the pergola and the distance the beams needed to span between supports, we needed to include steel as the largest solid timber piece one can purchase is a 50 x 228 which needs to be supported every 3m odd to stop it sagging in the middle. Thicker wider pieces are available in laminated pine or saligna. To span over 6m one would need to laminate to 114 x 400 at a cost of more than a steel I Beam.

The steel was fabricated as per a drawing supplied by the client. Because we were directly on the coast, we hot dip galvanised the steel and then installed it. It isn’t sufficient to electroplate and powder coat when one is this close to the coast. Once installed it was painted to match the charcoal grey colour of the rest of the steel on the building. Galvanised steel needs to be acid washed in order to remove the residue left after the galvanising process, dried thoroughly, then primed with a galvanising primer and then two coats of Velvaglo enamel. It will require periodic maintenance by re-coating it.

The timber was cut to size and slotted in and attached to pre drilled and pre fixed tags on the main I beams. By pre drilling the holes for fixing eliminates drilling once galvanising has been done and thereby breaking the galvanising.

The timber was left to grey naturally rather than sealing it with an oil. This won’t shorten the life span of the balau as balau contains natural resins and oils which protect it from both rot and insect infestation. Oiling it merely makes it look different. Some people prefer the oiled looked some prefer the natural grey / silver look. Leaving it to grey naturally also eliminates any maintenance issues going forward. If anything one would just pressure wash it from time to time.

For a free no obligation quote contact us on 082 496 5444, or you can use the contact us form below. We can assist with all your outdoor wooden requirements as well as solid wooden floors.

Balustrades on Wooden Deck, Durban

Posted on by
Reply
Balau deck boards
Wooden Balau Walkway to beach
Click to enlarge
Click to enlarge
Click to enlarge
Click to enlarge
Click to enlarge

There are a number of different types of wooden balustrades one can have built for your wooden deck. We offer this product in both Durban and Cape Town. I will run through a few options in this article and will mention the pros and cons of each one.

There is a slide show above which shows the different options. I do not have fancy names for them such as Colonial, or Mediterranean. I call them simply what they are.

The vertical picket wooden balustrades are probably the only ones that are compliant in terms of building regulations as none of the gaps are larger than 100mm. They are generally made from 60 x 60 balau upright posts attached to the fascia beam or first or last joist in a wooden deck. We use the 60 x 60 upright post on the corners and in the middle of a long run. All other intermediary posts are 30 x 60 balau. There is a top rail and a bottom rail onto which the vertical pickets are attached. Rails are generally 30 x 40 and pickets are 20 x 30 balau. The bottom rail is set at 100mm off the deck surface and the top rail can be set either 100mm below the capping, or directly beneath the capping. The capping is generally made from a 30 x 102 balau giving it ample width to place a glass or lean comfortably on it. The capping is then routed to give the corners a rounded edge. The distance between upright posts is determined by the total length of the wooden balustrade resulting in equal spaces between uprights. Pickets too are set at equal spaces between uprights. This is the most affordable design of balustrade as it is fairly simple to construct.

The Criss Cross design can come in two main designs. A simple criss cross between uprights with a capping on top or a criss cross between uprights with a box in the middle of the criss cross. The two pieces of timber that are used for the criss cross are normally notched half way through each piece at an angle so that they fit snugly into each other instead of lapping over each other. The box is also set inside the two criss cross pieces so that the whole balustrade is in line rather than pieces over lapping each other. This design can be expensive as the method to construct is time-consuming and the pieces of timber are generally larger than the vertical picket design. It can also be changed to result in many different patterns.

The wire rope design is particularity useful when you don’t want to obscure the view when seated. A balustrade at 1m high will block the view in a seated position for most average height people. The wire rope is 4mm in diameter so it is less visible than say a 30mm piece of timber. The posts are generally also 60 x 60 and 30 x 60 uprights with a capping of 30 x 102 balau on top. The wire rope is set at 100mm intervals but can be opened wider as they are not tensioned to guitar string tension. As such they are not suitable if you have small kids and anything over 1m from the deck to ground level. The swages, turn buckles and wire rope are all marine grade stainless steel.

For a free no obligation quote on your timber balustrade requirements please call us on 082 496 5444 or use the contact us form below.

Wooden deck in Massaranduba, Hillcrest, Durban

Posted on by
Reply

This deck was built with Massaranduba. Although Massaranduba is about 30% more per square metre than balau the client insisted on it as it is a much harder and denser wood than balau. As such it will last longer. It has a slight reddish tinge to it. This deck is to be left unsealed so will eventually turn grey / sliver. Therefore one will not notice that is massaranduba, but it will last longer. When choosing between balau or massaranduba one needs to weigh up the difference in cost vs. the longevity of both timbers. There is nothing wrong with balau, it will also give you a long life span. Massa is of a better quality and will therefore outlast balau.

We decked around the pool flush with the tiling on the patio which resulted in a single 90mm deck board being used as a fascia on the inside of the pool. Hence the difference in height between the water level and the deck is not that great. Often the deck can come up too high resulting in a big step up to the deck from water level. The pool therefore needs to be set at the correct height, in relation to the patio, to accommodate the deck at the correct height.

A quick note on new pool decks. The hardwood typically used in decking contains tannins which leach out when it rains. Storing them on a tiled surface almost always results in stains being left on the tiles after a downpour. Likewise one needs to be careful of installing the fascia on the inside of the pool, or deck boards that are installed on the pool’s edge, prior to filling the pool with water. If there is no water in the pool and it rains, these tannins will leach out and run down the new marbelite pool surface, staining it. The only way to get rid of the stains successfully is to sand it off. It is advisable therefore to get the pool done and filled before decking up to the sides of the pool and installing the fascia board. Alternatively, don’t marbelite until these tannins have completely leached out. It’s a tricky one because the pool contractor doesn’t want to marbelite until the lawn is done because of dust. The landscaper normally comes last, so it’s a bit of juggling that is required.

We decked around a circular concrete slab which is to be a fire pit and up to the edge of the brick and plaster bench around the fire pit.

We also installed a small pergola above the sliding door and included a small bar counter that can be accessed from both sides of the patio and deck. There was also a small decked area at the back of the house next to the fish pond and a screen on the front of the house.

For the screen we used a 20 x 30 slat instead of a normal 19 x 68 deck board. Although a 19 x 68 deck board works well as a screen, a narrower piece (30mm) with a smaller gap is a bit different and not the run of the mill timber screening. Although it is slightly more expensive than a normal 68mm wide deck board screen, it is very effective.

All in all a very nice job to work on and a pleasure to work with Massaranduba. It is lovely stuff. Hard as nails and long-lasting.

For a free no obligation quote on your wooden decking, pergola or screening needs in Durban or Cape Town, please call us on 082 496 5444 or use the contact us form below.

Wooden Decking Companies in Durban

Posted on by
Reply
wooden decking companies durban

Click to enlarge

There are many wooden decking companies in Durban that one can choose from when planning to install a wooden deck. Some are reputable companies and some are not, as in any industry.

Besides comparing price one should always compare services to make sure you are comparing like quotes. Some wooden decking companies in Durban for instance will offer to build you wooden deck as well as seal it and other will only quote to build it. Some will offer to fill the screw holes with epoxy to stop water getting in them which will cause rot and others won’t. It is these small things that one needs to ask about and make sure that the service being received from one wooden decking company in Durban is the same as the other that you are comparing to.

Our service at The Wood Joint, includes the following: –

Building the deck with quality yellow balau. We generally build our substructure out of H3 and H4 CCA Treated pine. This is not only due to a cost factor but also because the pine is correctly treated to H3 CCA level which has a life span of at least 50 years exposed to the elements. You can expect to pay about 40% more if you chose a balau substructure. H3 CCA Treated pine is guaranteed for 50 years if used in the correct application and installed correctly.  It will therefore outlast balau as a substructure because the balau is not, and cannot be, pressure treated. I have often seen balau joists rotting from the top where the water gets trapped between the joist and the deck board. We always use balau deck boards as balau behaves better than pine on horizontal surfaces. Balau is a lot more stable and the pine tends to cup and warp over time with the constant hot and cold, expansion and contraction and occasional wetting.

wooden decking companies durban

Click to enlarge

Our balustrades and stairs are all made from balau, unless otherwise specified, because if one uses pine as a balustrade, the pickets and cross supports need to be almost twice as thick as balau so they tend to look a bit too chunky. Balustrades do not work well in pine because of the knots found in pine which weaken the timber.

We use a kalgard decking screw which is guaranteed for 25 years by the manufacturer against rust. The screws are counter sunk and the counter sunk hole is filled with epoxy and saw dust so as to match the colour as closely as possible. Filling the screw hole stops water sitting in that hole and travelling up the deck board along the grain. Exposure to water for too long will speed up the rot process. So we fill it, sand it flat, and seal the deck using an oil based sealer which contains no wax. This makes it easy and therefore inexpensive to maintain your deck going forward. I have done a few refurbishment jobs where the decking company has not filled these holes and on the older decks, the deck boards have started to rot there. These are all standard services we offer which are normally included in the price we quote. So when comparing our quotes to others, please check what value added services they are offering you.

For a free no obligation quote on your wooden deck, pergolas, screens, walkways, etc. please contact us on 082 496 5444 or use the contact us form below.

Wooden Balau Deck Built in Malvern, Durban

Posted on by
Reply

Wooden balau deck built in Malvern, DurbanWe incorporated a pergola style roof covering into this wooden balau deck we built in Malvern, Durban.

We started with our deck in a normal joist and beam system, but installed our main beam of 50 x 228 on the front in line with the joists rather than slotting it in underneath. This was simply because we didn’t have much space below the deck to slot it in. On the front edge it was fine to use a 50 x 228 beam, but midway across the deck we couldn’t use a 50 x 228 and had to secure each joist to the ground with a small post. It wasn’t a problem though because we were placing it directly on top of the slasto substrate. So there were no holes to be dug and filled with concrete.

We then attached two 76 x 76 pine posts, which can also be replaced with balau 90 x 90, to give us some posts to work from for our pergola. Our pergola was built using a 50 x 228 beam on the front, but this could have also have been replaced with a 38 x 152 as there is no real weight on top of the pergola. You do get some wind loading from beneath in pergolas with fixed roof sheeting, but not much weight from the top. We only used two posts as our main beam on the front was long enough to span across the 5.2m of the front of the deck. Adding extra posts in between clutters up the front of the deck.

Wooden balau deck built in Malvern, DurbanWe added 50 x 76 purlins and covered that with clear polycarbonate roof sheeting. This allowed the light to still get in but it will be protected from rain. This roof sheeting is however not that attractive from beneath so we clad the underside with thatching laths with no gap between them. I’ve tried building one of these before with a laths gap between laths, but it doesn’t work as you can then see the roof sheeting clearly. Because the laths are not a regular uniform thickness all the way along, you still do get some gaps, even if placing them side by side, which allows light through but takes away the view from beneath of the roof sheeting.

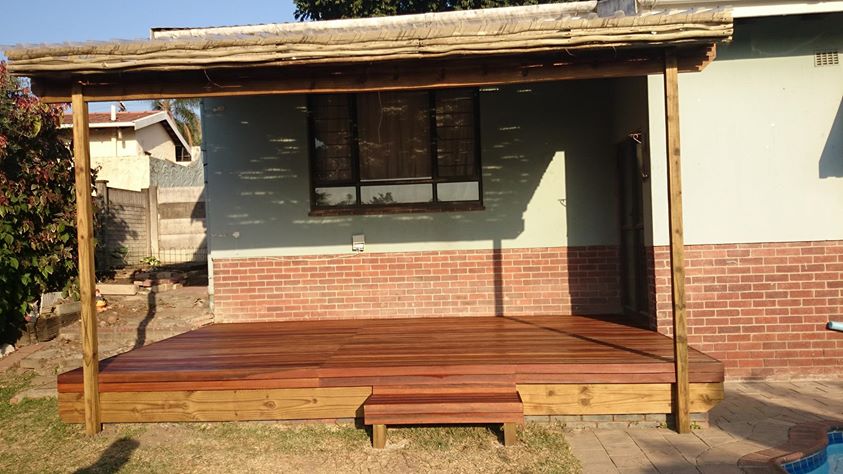

We added a step on the front, as the top of the deck was more than 200mm off the ground on the front so this made for easy access to the garden from the deck.

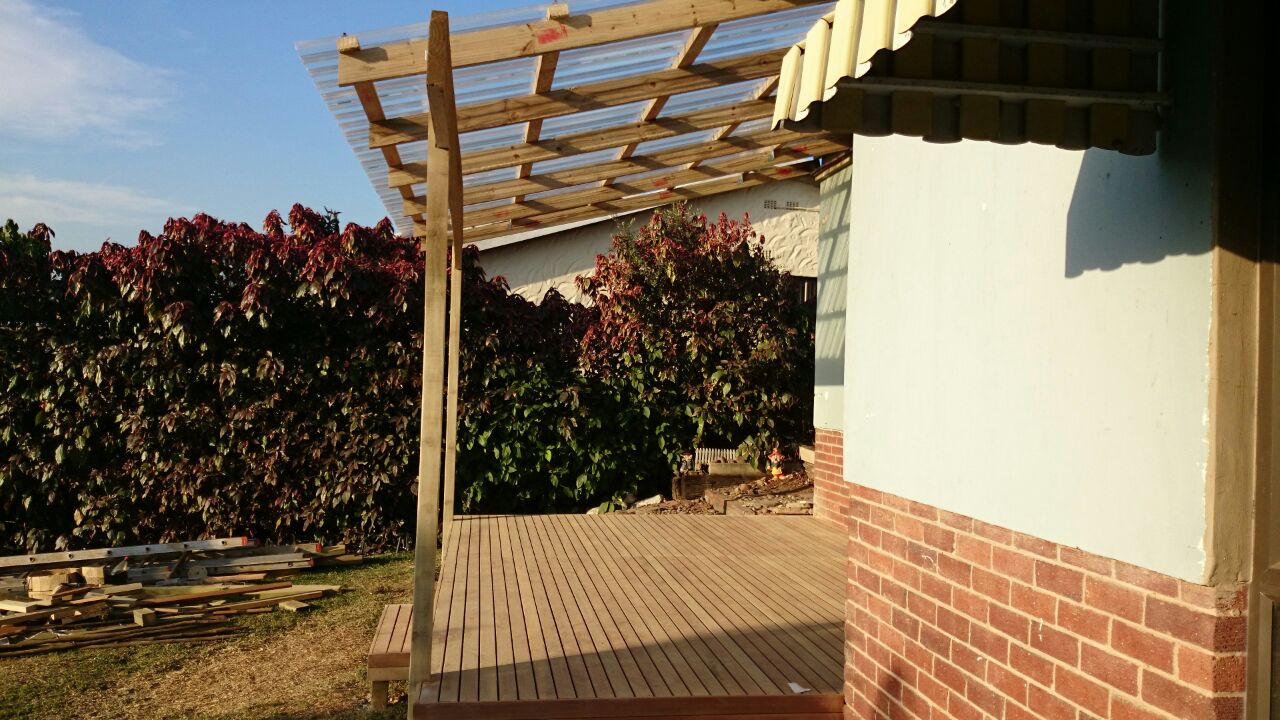

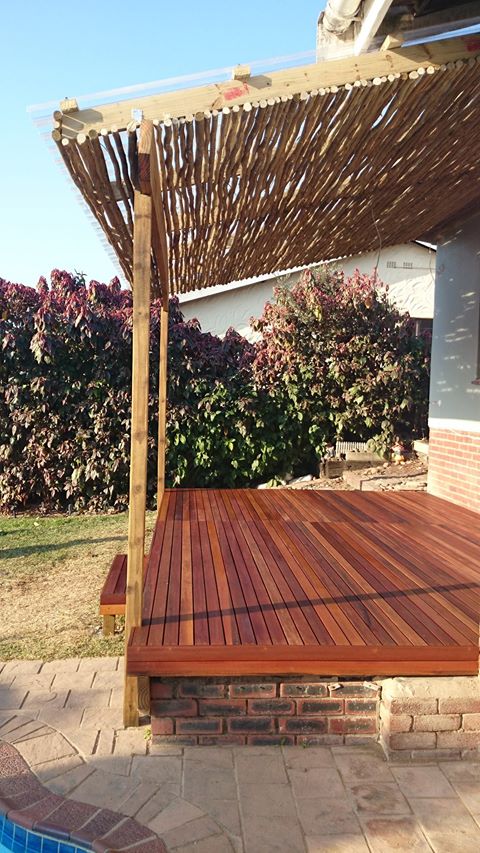

In the pics alongside you can see the roof sheeting on before we placed our thatching laths on. We’ve also previously used a translucent bronze roof sheeting which works very well to cut the glare from the sun. The polycarbonate roof sheeting is far better than fibre glass roof sheeting, albeit more expensive, as it doesn’t contain strands as the fibre glass sheeting does.

For a free no obligation quote on your wooden deck, pergola or any other outdoor wooden construction, please call us on 082 496 5444 or use the contact us form below.
