Balau Wooden Deck, Kloof Durban



Here’s a straight forward wooden balau deck we built in Kloof, Durban in October 2018. There were a few angles that had to be cut precisely to finish it neatly but other than that the deck was straight forward to build.

We used an H3 and H4 CCA Treated pine substructure. Because the pine is S5 (Industrial SABS approved grade) it is strong enough to be used as a structure for various building purposes. It is also relatively inexpensive in comparison to other hardwoods that could be used as decking structure. Being S5 it contains a certain amount of knots per square metre and is therefore SABS approved as structural timber. Timber with more knots per square metre is normally used as knotty pine ceiling boards where there is very little structural pressures on the timber. Timber with less knots per square metre is referred to as semi clears or S7 grade. S7 becomes quite expensive and is used as deck boards at times to eliminate knots failing on the deck surface. However because one would need to use twice as much wood (38mm thick) when using pine deck boards, the cost is the same as using a 19mm x 68mm balau deck board at half the quantity of wood. As such we use 19 x 68mm yellow balau deck boards as the surface for most of our wooden decks in Durban. The balau is far more stable being twice as dense and hard with a regular straight grain and as such these balau deck boards don’t twist, cup or bow as easily as pine. With the pine being H3 CCA treated it has a life span of at least 50 years outdoors in the rain and weather.

We added a small flight of open riser steps to this deck to gain access to the garden. These are done in full solid balau using 30mm stock. Normally the stringers are 30 x 215 and the treads are made of multiple pieces of 30 x 102 with cleats fixed to the stringers and the treads are fixed to the cleats. They don’t work that well in pine as the pine becomes very visible throughout and one ends up cladding it anyway which brings the cost back to the same as solid balau. The alternative to open risers steps is to do closed risers where box type steps are made of pine structure and then clad resulting in the riser being closed.

The screw holes of all our decks are counter sunk with a Kalgard decking screw and filled with a clear epoxy and saw dust mixture to match the colour of the wood and then ground flat and sanded smooth prior to oiling the deck. You’ll find other articles on this site where we discuss the pros and cons of using oil vs other finishes available on the market and leaving the deck to naturally grey and weather. If you use the search bar at the bottom right and search for maintenance you’ll find a complete article on deck maintenance.

For a free no obligation quote on your wooden deck in Durban and surrounding areas, please use the contact us form below or you can call us on 031 – 762 1795.

Wooden Balau Decking Companies in Durban

This slideshow requires JavaScript.



Here’s a wooden deck we at The Wood Joint built in Durban recently. The Wood Joint is a wooden decking company situated in Durban and servicing most of KZN. It was a low-level wooden deck basically at ground level joining the pool to the patio and semi surrounds. The site was situated in la Lucia Durban.

When building a wooden deck that will join a verandah to a pool, one needs to be careful to set the height of the pool correctly. The height to the verandah is of course pretty much set based on what the threshold of the sliding doors are. So working from a datum line of the top of the tiles of the verandah one would set the top of the concrete ring beam of the pool down 70mm from the required height of the deck. This will allow for a substructure of 50mm and a deck board thickness of 20mm (19mm in fact but to keep things simple rounded to 20mm). A 50mm batten fixed to the top of the concrete ring beam of the pool will give sufficient space to allow water to evaporate properly, keeping below the deck as dry as possible, and enough structure to create a positive fixing of deck board to bearer. The distance created between top of deck and pool should be minimal. It is not advisable to go much higher than 70mm because it creates a very big “climb” out the pool (from water level to top of deck).

In this deck pictured you will see we ran the deck boards perpendicular to the verandah and pool side. Using this method it is not that important if the side of the pool is parallel to the verandah as the length of the deck boards can be varied quite easily without noticing any difference in length. On the other hand when the deck boards are run parallel to the pool side and verandah one needs to be careful to get the two as perfectly parallel as possible. Any difference will be visible because a deck board will need to be cut in a wedge shape to complete the space. If the difference is not that great then one can “fan” the deck boards to take up the difference in space by making one end’s gaps slightly bigger than the other end. So on one end a 6mm gap can be left and on the other a 4mm gap (normally 5mm throughout). This gains 1mm per deck board run. After 20 deck boards one can adjust for a 20mm difference in spacing. Another “trick” when running boards parallel to the pool side and verandah is to try to end on a full board rather than a half board. Again space between boards can be adjusted either up or down to try to end on a full board. It is much neater and won’t cause as many problems going forward. From the pics you’ll see we ended the deck on a half board which in this case was unavoidable because of the configuration of paving and deck.

You’ll see from the pics that the garden is mostly left for landscaping until after the deck has been built. Trying to build a deck with newly laid grass and not damaging it is near impossible. Always get you building work done before landscaping.

For a free no obligation quote on your decking requirements in Durban please call us on 031 – 762 1795 or use the contact us form below.

Engineered Hardwood Flooring

This slideshow requires JavaScript.

Hardwood flooring has become ever popular in many countries. In South Africa, home owners are opting for these in preference to the old style parquet and the laminated style of flooring. Hardwood floors go hand-in-hand with luxury, and offer timeless beauty and are low on maintenance. Home owners looking for a classic look might like to consider engineered hardwood flooring. These points should be taken into account, or kept in mind when weighing up the pros and cons of hardwood flooring.

Unlike conventional hardwood, which comes from its raw state and into your home, engineered hardwood is a more complex product which consists of layers. The outermost appearance layer is a hardwood veneer, a thin slice of wood of whatever wood type you prefer. The inner layers are made of plywood, high density fiberboard, or hardwood. These core layers give the product more stability than regular hardwood, while the outer veneer surface gives the floor its aesthetics, its beauty, and, of course, its authenticity.

Engineered hardwood is different to a hardwood laminated ‘wood’ because the surface is made of real wood. While laminated flooring has a core of high density fiberboard, its surface is basically a picture of wood. Laminate is less expensive than engineered and solid hardwood, but has a different look, feel and even sound when walking on it, due to its make up.

Pros:

  • Engineered hardwood flooring is designed to reduce moisture associated with conventional hardwood.
  • The layers block moisture and provide added stability to your floor.
  • This is a low maintenance option because of the fact that Engineered Flooring will not swell or warp.
  • Choosing engineered flooring is considered more environmentally-friendly than traditional hardwood for various reasons.
  • Veneer is sliced very carefully and precisely – it is not cut with a saw. This process produces no sawdust, which means that the entire tree can be used. The sawdust which we know amounts to a significant pile when making hardwood boards is wasted wood.
  • Hardwood trees grow a lot more slowly than the trees used to construct engineered flooring cores. More surface area is produced making veneer, therefore installing traditional hardwood uses many times the amount of slow-growing tree. This makes the replenishing time much longer.

Engineered Hardwood Flooring Cons

  • There are very few disadvantages to this type of hardwood flooring but it is neither a foolproof project and not necessarily the right floor for every application.

Comparable to solid hardwood in terms of cost: –

Engineered floors are still considerably more expensive than laminated floors, tile or carpet. They are, however much more hardy, are low maintenance and will wear a lot better.

That said, one should also take into account the biggest concern as a homeowner … that being avoiding shoddy or inferior engineered work and products, merely because of cost.

Veneers that are too thin will prevent sanding and refinishing opportunities that may double the lifetime of the floor.

Some veneers are so thin and poorly made that they can prematurely warp or fade.

Core layers should still be made from high-quality wood. Some manufacturers try to cut corners by using fiberboard or oriented strand board which might well compromise the stability of your floor and could result in an inferior flooring product.

Your Home is your Castle … quality surpasses cutting corners

It is, without exception, easier to install engineered flooring and the handy man homeowner is often encouraged to install his or her own engineered floors. It is never-the-less, a major project with big financial implications, therefore, I suggest you weigh up carefully, the virtue of employing an experienced craftsman to do the job (who will also guarantee his finished product, surely?) and doing the work yourself …and without wanting to reduce your skill-ability, don’t be too over zealous about your own home improvement skills just to get the job done cheaper! Even for the majority of homeowners who hire a flooring contractor for the job, you’ll save a hefty sum on installation, which is important given that most engineered flooring is more expensive than solid wood.

The cost of high-quality engineered floors (thick veneers) will depend on various issues, the obvious one being the type of wood you choose. In South Africa, imported Indonesian Balau is readily available, is solid, a hard wood and also hard-wearing, able to withstand much more than a softer local wood might be. It lands at quite a reasonable price and is of a superior quality. It is, for example largely used for outdoor decking. Solid wood flooring may be cheaper overall, however it will still take longer to install.

For a free no obligation quote on your solid hardwood engineered flooring please contact us on 031 – 762 1795 or use the contact us form below.

Balau Cladding on Ceiling – Umhlanga, Durban

Here’s some balau cladding work we did on the ceiling in the reception of a new office building in Umhlanga Rocks.

We used 19 x 30mm strips of balau which we ripped from a standard 19 x 68mm balau deck board. We started off with a treated pine frame or structure on to which we attached these balau strips. Being a ceiling it was important to ensure that our structure didn’t fail under the weight of the balau. Balau, being a very heavy and dense wood, can get quite heavy when suspended from a ceiling. Secure fixing points, and enough of them, are necessary to ensure it doesn’t fail.

It was very important to do this as neatly as possible as it is the reception area and as such is visible to all visitors as they enter the door. Care needs to be taken to ensure that gaps between boards are uniform and that the boards are parallel to each other. Also it is important to get the total structure to line up parallel with walls and corner of walls and slab above. It becomes unsightly when these don’t. At times the corners of walls may not be perfectly square and adjustments then need to be made so that the ends of the timber structure are at least parallel to the adjacent wall even if it means the structure itself isn’t square. Small adjustment can be made to the gaps between boards to compensate for this. 1mm on each end of a gap won’t be visible to the naked eye but will result in a 20mm “gain”, after 20 boards, on one side.

The ends of this suspended balau ceiling or bulk head needed to tie up with the boards to give it an appearance of being one solid, much wider piece of timber. It is often not possible to use a full-sized timber as it becomes too heavy on the structure, and the pocket. In these instances “build ups” are used to make it look like one solid wider piece of timber. The same principle is common in table tops where the top is only 22mm thick but is built up on the edges to give it the appearance of being 40mm thick. Care must be taken to do it neatly and it must be planned properly so that each piece fits into each other. There’s nothing more frustrating than getting to the end only to find you are 20mm out and should have set your first piece 20mm closer in.

Screw holes were filled with a clear epoxy mixed with saw dust and sanded flat.

This balau ceiling was left un-oiled to give it as much of a natural appearance as possible. It can be finished with an oil and the only product to use here is either Timberlife Satin Wood 28 Base or Woodoc Deck Dressing. This oil soaks into the timber. Most other products will dry on the surface and will eventually peel and flake.

For a quote on all of your balau timber works, decks, balustrades, walkways and stairs please use the contact form us below or contact us on 031 – 762 1795. If you prefer to build your own we supply the timber and other materials required through our sister company Ocean Timber Products (www.oceantimber.co.za). You can leave an enquiry there or on this page.

Wooden Deck and Stairs Built in Umhlanga, Durban

This wooden deck we built for a client in Umhlanga, Durban was a suspended wooden deck about 2.8m off the ground. The idea was to make use of the flat concrete roof as a deck because the views from up there are of Durban Anchorage where ships anchor before proceeding to Durban port.  The views also extend all the way down the Golden Mile of Durban.

We didn’t want too many posts going to ground as the area beneath the wooden deck is still used as an outside patio. So we built our substructure using H4 CCA Treated pine in a 50 x 228 size rather than the normal 38 x 114. This way we could span our wooden joists of the deck across a longer distance without the need to support them below with another beam, and therefore posts. We attached the one end of the row of joists with a T joint to another 50 x 228 beams which carried the one side. The other side of each joist was hung in a custom-made galvanised steel joist hanger. The result was that our entire substructure was in one plane rather than having the joists sitting on top of a beam. It allowed us to keep the ceiling height of the deck higher, without having to increase the height of the top of the deck surface. These pine wooden joists were later sanded and sealed to make them look closer to the balau we installed on top of the pine.

The wire rope balustrade was fairly straight forward and we extended it past the deck on to the concrete slab flat roof.

The challenges in this wooden deck came in building the stairs. We had a fixed height to work with and a limited lateral distance in which we had fit all of our treads and risers whilst still keeping our risers and treads compliant. To add to this we had a window we had to pass to get down quick enough in our stair case in order to miss the window, plaster band and plumbing on the side of the house. The only way possible was to split the staircase into three flights with two landings where the flights turned at 90 degrees. We also had to split each landing into three windings in order to gain an extra two risers per landing in order to finish the stairs where they needed to finish. We adjusted the tread depth to shorten our treads and therefore total lateral distance to basically “sqwish” then all in. Normally we use 3 pieces of 30 x 102 balau for treads with two 5mm gaps between boards resulting a tread width of 316mm. We ripped the middle 30 x 102 to 50mm to reduce this lateral distance whilst still remaining compliant at 264mm but gaining some lateral distance in order to squeeze them all in. We finished it off with balau deck board cladding in order to cover all the pine structure. The job took time but it was well worth the wait. Stairs that look nice, work nicely and remain compliant.

It was all finished with an oil based sealer which penetrates the wood rather than drying on the surface.

Contact us for quotes on your wooden decking, stairs, balustrade and other outdoor timber construction. You can call us on 031 – 762 1795 or you can use the contact us form below.

Balau Timber Pool Deck, La Lucia, Durban

Here’s a wooden pool deck we built in La Lucia, Durban recently. In the gallery above you can see pics of the old deck and then pics of the new deck. The old wooden pool deck had started to rot at critical points. The reason for rot in many wooden decks is that the screw holes are not plugged, water gets in and travels up the end grain of the wood resulting in rot at the screw holes. Water travels more easily along the end grain of wood than the side or face grain. So it is important to seal the end grain as far as possible to prevent this. In the case of the end of deck boards the water never really gets trapped so it can drain away quickly enough to prevent rot. However in the case of a screw holes water collects in the screw hole and then has enough time to be absorbed by the end grain before it evaporates. As a standard procedure we fill counter sunk screw holes with epoxy to prevent this from happening.

The epoxy we use is clear so that saw dust can be mixed with it to match the colour as closely as possible. It is also slightly pliable. In hot and cold weather, wood expands and contracts, as does most materials. If you consider a screw hole. The sides of the screw hole will expand thereby closing the screw hole or making it smaller. Whatever is in the screw hole, as a plug, will also expand. So if the screw hole is getting smaller and the plug is getting bigger it makes sense that whatever is in there will likely try to “pop” out. Using a slightly pliable epoxy can reduce the chance of this plug popping out. Hence the reason for not using solid wood plugs cut with a plug cutter. The epoxy should be pliable enough to take up the expansion of the screw hole but hard enough not to degrade due to weather conditions.

We used 90mm balau deck boards on this deck. They are slightly more expensive but some clients prefer them to the standard 68mm boards. Being a wider board one needs to secure them on both shoulders on each joist rather than just a single screw in the middle of the boards, as is the case with a 68mm board.

The job took a bit longer than I would have liked because the substrate that we were building on top of, paving and concrete in this case, were quite uneven so we had to shim and trim joists to get the top of our joists level, flat and at the desired height to be flush with the inside of the house. The jacuzzi cladding was also quite tricky because we had to build a removable structure so that one can access the front of and below the jacuzzi. One side of the jacuzzi step is also wider than the other one so the corner required some fancy carpentry work in order to get the boards to line up and match. I’m glad I took so many pics of the deck before we removed it so that we could copy it exactly.

There were also some wedges that we had to cut along the front edge as the tiles and existing patio were not square to the wall we were building our wooden deck up against. Whenever the existing buildings are not square there is always some sacrifice one needs to make and the trick is to get it least visible to the eye. In this case the client wanted the wedges rather than cutting the tiles or bringing the front of the deck past the line of existing buildings.

For a free no obligation quote on your wooden pool deck, or other balau timber construction, please call us on 031 – 762 1795, or use the contact form below and one of our representatives will get in touch with you.

Wooden Deck, Umhlanga, Durban

Here’s a wooden decking project we completed in Hawaan Forest Estate, Umhlanga, Durban. There were two houses right next door to each other so it was a bit easier on the pocket when it came to travel to site. The whole job was quite big too, in excess of 200 square metres of coverage, so it was worth the travel from Home Base in Waterfall, Hillcrest.

House 1 consisted of a fairly large deck of about 80 square metres. It was an interesting deck to build in that it was built flush with the tiled covered patio, extending to the pool, with steps as wide as the deck leading into the garden. It incorporated a fire pit with step benches on three sides set slightly away from the pool. The front of the steps were clad so that beneath the deck was not visible. We met our deck boards at a 45 degree angle on the vertical cladding.

There were various smaller decks around the front of the house and the courtyard consisted of a steel frame and steel gate clad in balau deck boards. There was an interesting deck on the first floor of about 7 square metres that is accessed through a door on to the roof top. It is bordered by three sides of planter boxes surrounded by balau.

The garage doors were 6m wide and 2.7m high. The frame was made of steel and deck boards were used to clad it. It resulted in it being quite heavy but complimented the front of the house by following through with the wood cladding design so typical of Hawaan Forest Estate homes.

Along the front of the first floor are steel sliding screens of 14m x 3.1m high. The decks and courtyard screens were all done in 19 x 68mm balau reeded deck boards whilst the sliding screens on the first floor were done in 19 x 30 balau slat. In order to get a 19 x 30 slat we ripped a normal 19 x 68 deck board in half to 30mm wide. These were then attached to the steel with a 20mm screw from behind so that no screw holes are visible from the front.

Most deck boards are reeded on one side which allows water to dissipate more easily between the deck board and joist, so we had to source non reeded deck boards for this application. If it had been reeded the grooved side would have been visible from either the inside or the outside. Non reeded deck boards are not that common, but they are available, and it is cheaper to rip deck boards to 19 x 30 than to buy 20 x 30mm slats.

House 2 had a much smaller pool deck of about 25 square metres. It was fairly intricate though in that the deck had to be tucked underneath the wall on one side and beneath the tiles of the pool fascia. The patio above the pool had a fall to it to allow water to run off, so the edge of the deck could not be level, otherwise it would have resulted in a stepped join between the wooden deck and the patio. There are also a few smaller decks surrounding this house and it too has a 13m long by 3.1m high sliding screen system in steel with balau 19 x 30 slats.

I will update these pics above once other contractors have completed their areas of work to give you a good idea of what is possible in timber decking and screening.

For a quote, and design, of your wooden decking and screening requirements, please call us on 031 – 762 1795 or use the contact us form below.

Wooden Balau Walkway Umhlanga, Durban

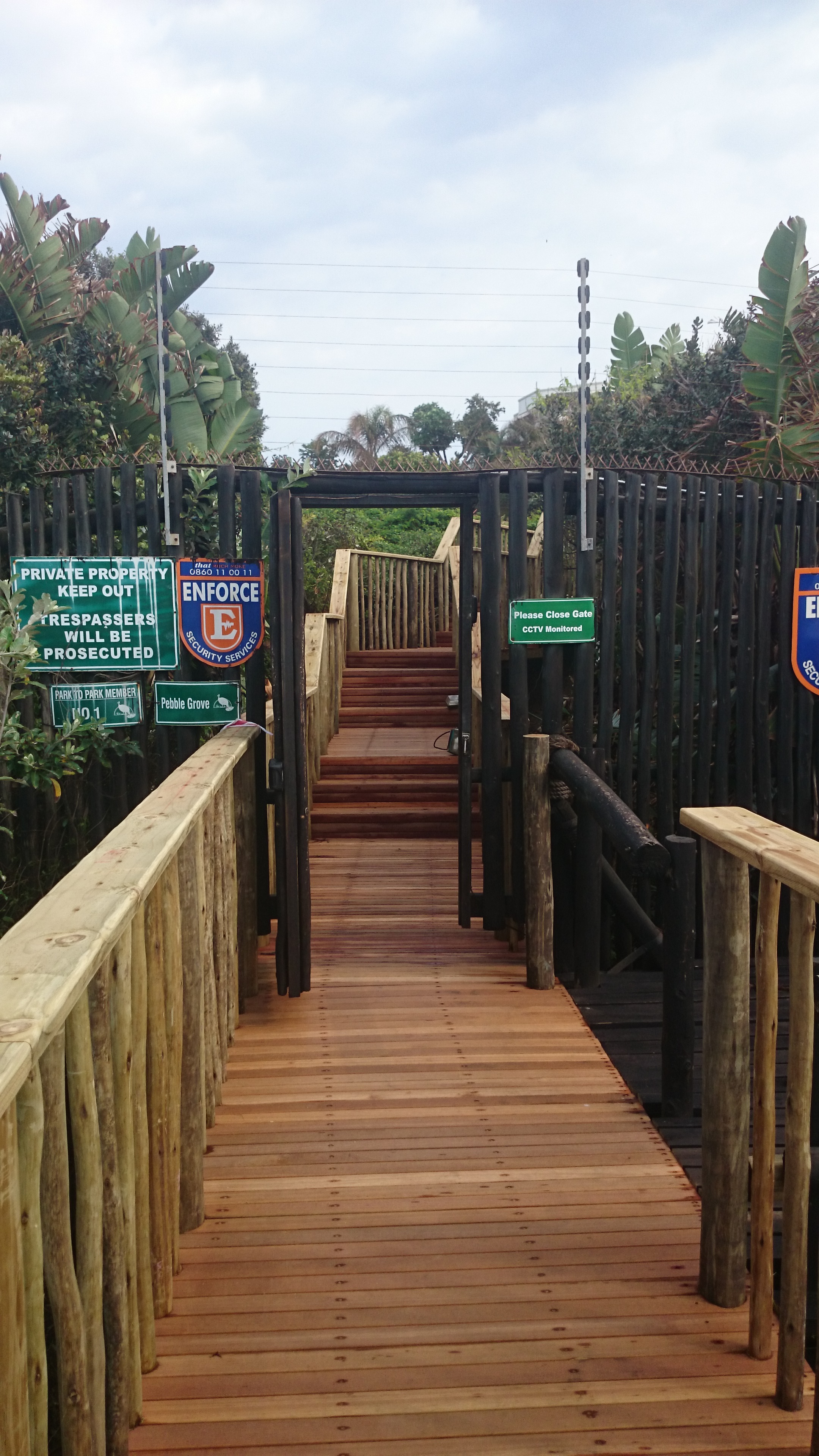

Wooden Balau WalkwayThis wooden balau walkway, or bridge, leading to the beach, needed to be replaced as the old one, although it was nearly 20 years old, had started sinking on one side. It had been built on beach sand so the concrete that had been used to set the upright posts had sunk over time into the soft sand. This problem also occurs on decks that are built on the bluff as the Bluff is essentially one big sand dune, so many parts of it are soft enough to allow a post to sink over time.Wooden Balau Walkway

We overcame this problem by making use of a floating foundation. It is often used in building houses where the soil is very soft. Instead of throwing a concrete foundation beneath the walls and bringing the bricks up and then throwing a slab, the entire foundation is a concrete slab on top of which the bricks are laid. The result being that it creates a much larger foot print in the sand and is of course more difficult to sink than if it was a column of concrete.

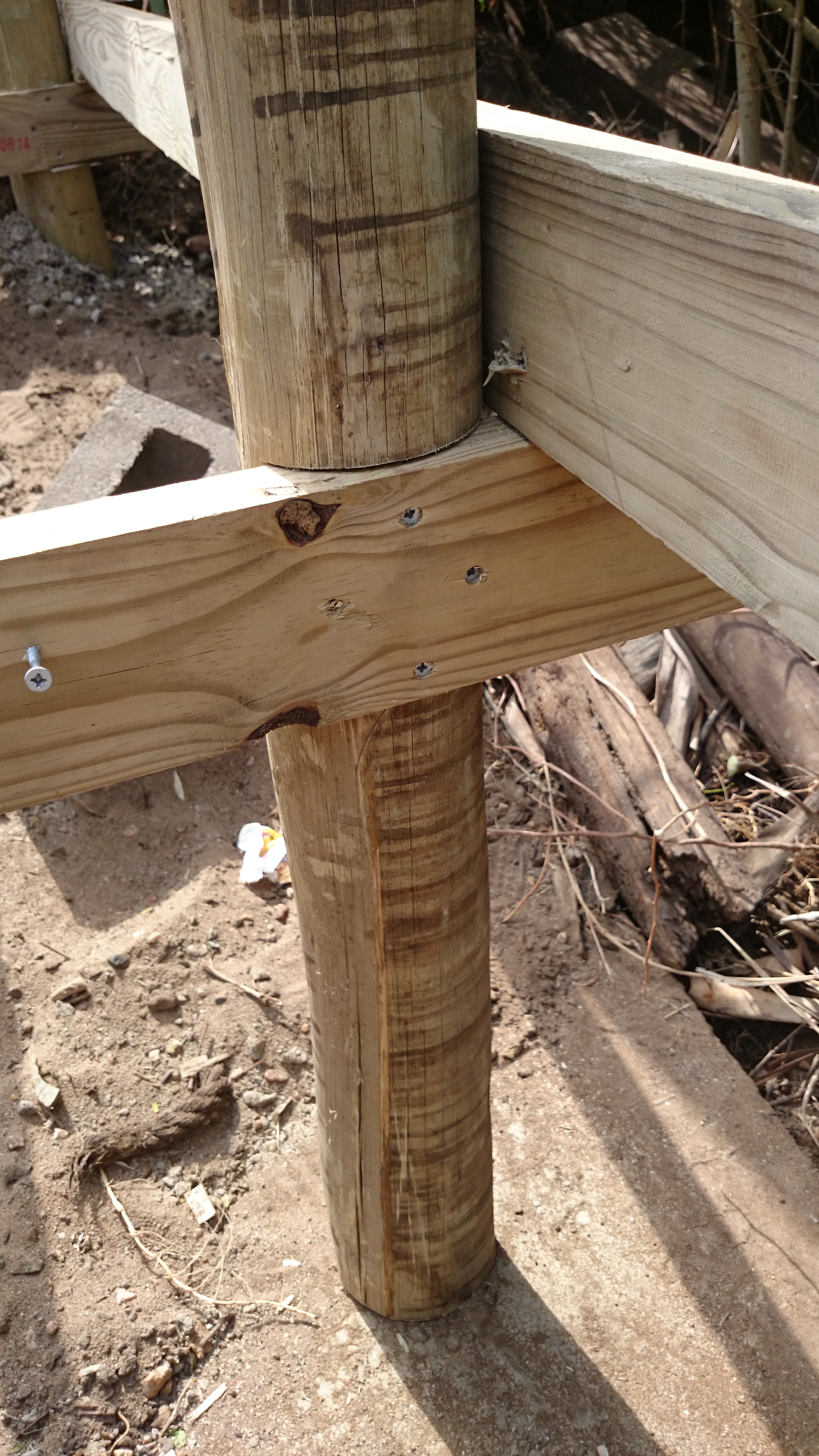

This method solved the problem of the posts sinking, but created another problem in that there was no lateral support for our posts which would have resulted in them falling over. This was overcome by throwing a “pad” on every second post and every other post was set 600mm in the ground in concrete. So one post stopped it from sinking and the other gave it lateral support and stopped it from falling over.

The floating “pads” were 600mm x 600mm and 150mm thick with mesh in between to stop the concrete from cracking with the weight of the deck.Wooden Balau Walkway

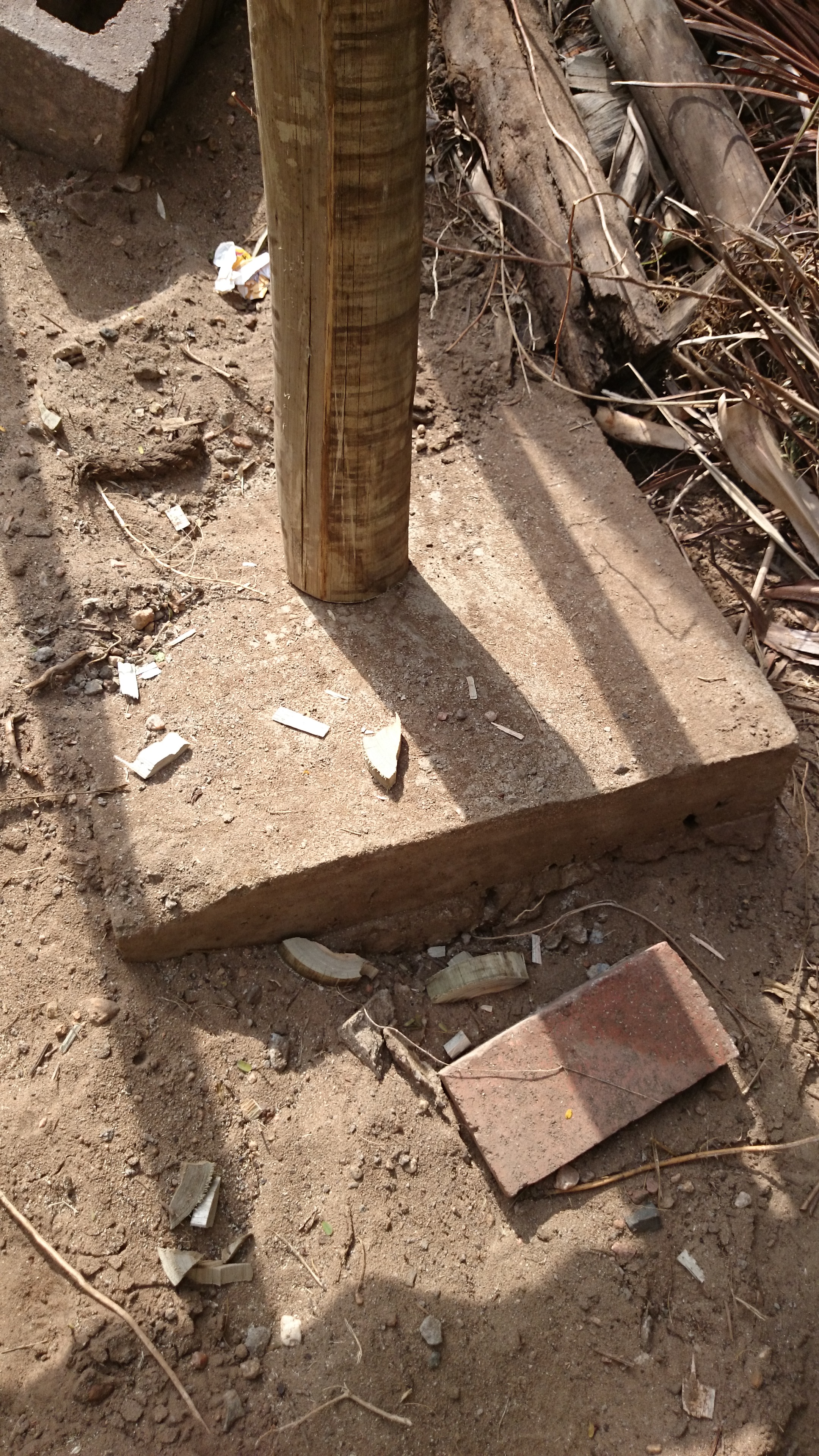

The pics alongside show the “pad” that the upright posts sits on top of and a post that has been buried in the ground 600mm.

Once our structure was up we installed our joists and decked it using balau deck boards. The width was 1.5m so we installed 4 joists to give us joist centres of 500mm. This is about the maximum one can span a 19mm deck board without it bowing from the weight of a person. Anything bigger than 500mm will result in the deck surface being springy. One should aim for between 450mm and 500mm. This of course applies to a 19mm balau deck board. If another timber is being used, or the board is anything but 19mm thick, then this will vary.Wooden Balau Walkway

We used the uprights, which were 100 / 125, H4 CCA treated gum poles, as our uprights for our balustrade too so as to ensure that they were sturdy. Because our gum poles were between 100mm and 125mm in diameter, we had to use a 38 x 152 H3 CCA Treated pine capping; otherwise the capping would have been narrower than the upright which would have looked odd. We then installed droppers as our pickets and secured these through the top of the capping and from underneath the deck boards.

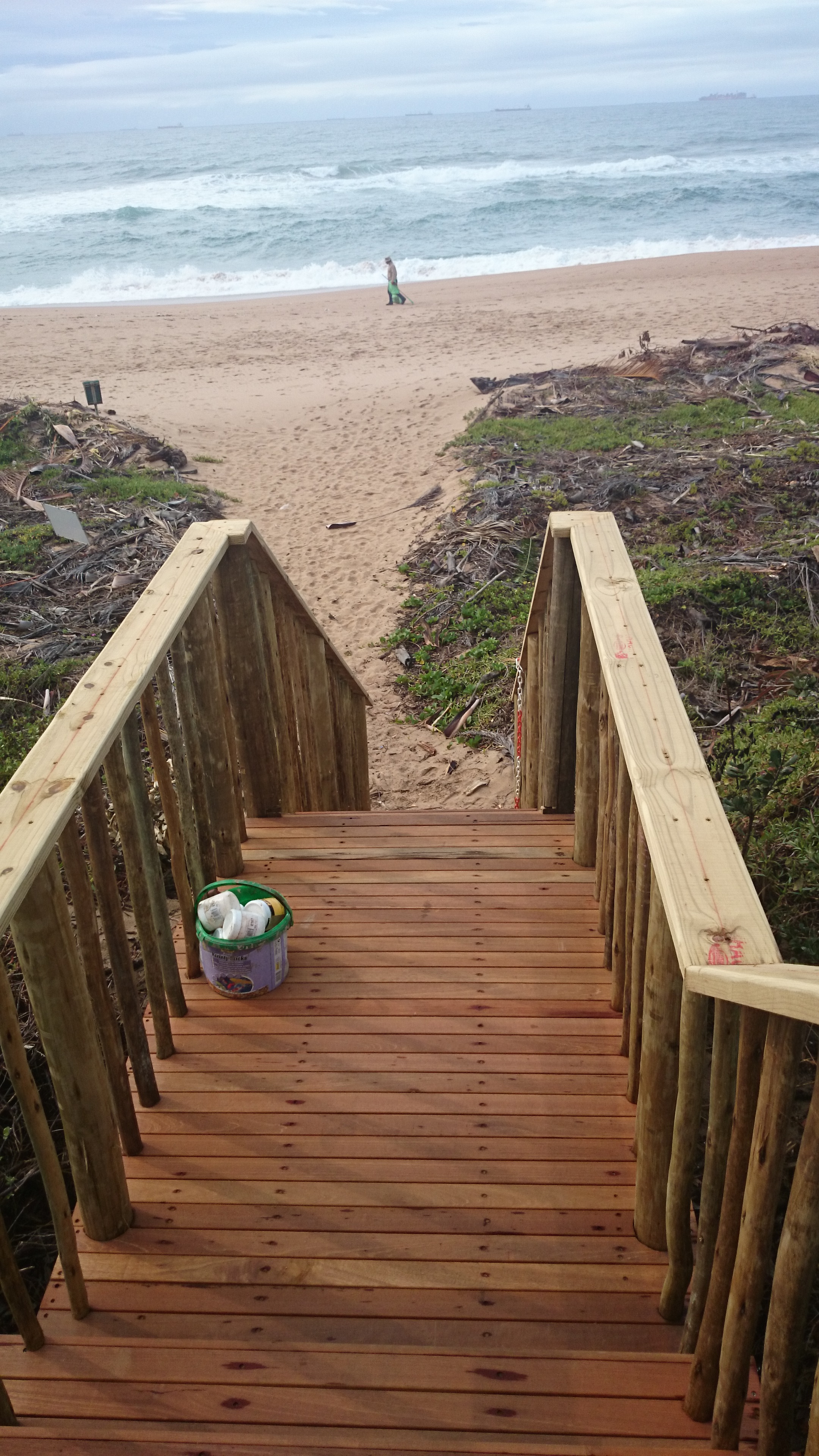

Our stairs leading from the last section of walkway to the beach were made using H3 CCA treated pine stringers and treads and we then clad the treads with balau to match the walkway surface.

For a free, no obligation quote, on your wooden decks, walkways, bridges, screens, pergolas and other outdoor timber construction, please call us on 031 – 762 1795 or use the contact us form below.
