Tag Archives: Bälau

Wooden Sun Decks Durban and Cape Town

Posted on by
Reply
Wooden decks Durban and Cape Town

Click to enlarge

A wooden sundeck is a valuable extension to your house in that it is relatively cost-effective whilst still increasing the living area and total coverage of your property. If properly installed and maintained it will give you many years of warmth and enjoyment and you will retain the value of it when ultimately selling your property. It is more cost-effective than brick, concrete or steel and with the trend moving towards sustainable and green building, a sun deck, sourced from sustainable forestry will retain its value for many years to come.

We generally use CCA treated pine in our substructures as it is a lot more cost-effective than using balau and we are still able to offer a 50 year supplier guarantee on the timber used in the substructure. This is provided we document the build with photos, retention records from the treatment plant, the date and invoices of when we bought the timber etc. As a rule we build in accordance with their criteria for the guarantee, but if a guarantee is required, we must be notified beforehand so that we can obtain these documents during our build. We use balau deck boards on the surface of the deck because they are infinitely more stable and do not warp or twist as much as balau. This is not as important in the substructure because it is largely covered from the sun and the pieces we use are a lot thicker so don’t warp or twist as much. Deck boards on the other hand take the full brunt of the sun and tend to warp more quickly. Also we source our balau at very competitive prices and can therefore build a deck at very competitive prices, even compared to using pine deck boards. Pine deck boards are much softer so one has to use twice as much wood negating the cost saving by using a cheaper timber. The structural pieces in balau are more expensive per cubic metre than pine so using a CCA treated substructure reduces the cost which we pass on to the client.

We use kalgard screws which are guaranteed by the supplier against rust for 25 years, we counter sink them and close the holes using an epoxy and saw dust mixture to match the colour, thus eliminating water ingression through the screw holes thereby reducing rot at the screw hole. They are sanded flat and we seal our decks using an oil based sealer which penetrates the timber rather than leaving a coating or film on the surface. Maintenance is therefore easy and inexpensive. You simply wipe clean the timber, clean any greasy marks off with turps and re-apply using brush, sponge, cloth or spray.

For some expert advice or a quote, please contact us on 082 496 5444 or complete the contact us form below.

Go back

Your message has been sent

Stainless Steel Wire Rope Balustrades, Durban

Posted on by
2

This slideshow requires JavaScript.

Below is an article on wire rope balustrades to refresh the methods of installing them, display some pictures and highlight some pros and cons of this type of balustrade.

Wire rope balustrades are normally installed when one wants to avoid limiting the view as much as possible whilst still providing a barrier at the end of a deck. As opposed to solid timber balustrades which obstruct the view when in a seated position. A wire rope balustrade limits this as the cables are only 4mm thick.

On a standard 1m high compliant balustrade one would use 8 strands resulting in 9 gaps of 107mm each after taking into account that the capping is 30mm thick. Although the wire rope is tensioned on either end it is not tensioned to guitar string tension and can therefore be pulled open to create a bigger opening than 107mm. Care should therefore be taken when installing these wire rope balustrades if the property owner has small kids. They are not the safest and the height of the deck off the ground should be taken into account when choosing this style of balustrade.

As mentioned above the wire rope has a 4mm diameter. It consists of 19 smaller strands making up one larger strand (1 x19). The other type of wire rope is a 5mm wire rope. This is a 7 x 19. So it has 7 x 19 strands that make one 5mm strand. At The Wood Joint we use only the 4mm (1 x 19) wire rope as this is marine grade stainless steel and won’t tarnish as easily as the 5mm wire rope.

The 4mm rope doesn’t bend as easily as the 5mm rope so it cannot be used in conjunction with turn buckles where the rope needs to bend around the buckle 180º. Instead we make use of a swage and button head system where the wire rope is crimped into a swage on one end and a button head, which is sunk into the timber upright, on the other end. They are much neater than turn buckles but it does result in terminating the strands at a 90º corner and starting a new strand for the next run. As such, posts need to be doubled up so that a new button head can be installed where a swage terminates on the previous run. The end result is a slightly more expensive balustrade but one that won’t tarnish as easily and one that has a much neater appearance.

Care must be taken to cut the wire rope at the right length so as to have enough rope to insert it into the swage but not too much so that it can’t be tensioned properly. Once it is cut and crimped it can’t be re-cut or “uncrimped”.

The swage and button heads should be crimped towards the beginning and crimped twice to avoid failure later on. They can be finished off neatly with a stainless steel dome nut.

We are both suppliers and installers of wire rope balustrades. We own a crimping tool designed for 4mm wire rope which is also available for hire. Call us on 082 496 5444 or use the contact us form below for pricing and availability.

Go back

Your message has been sent

Balau Duck Boards for Wooden Decks – Durban

Posted on by
Reply

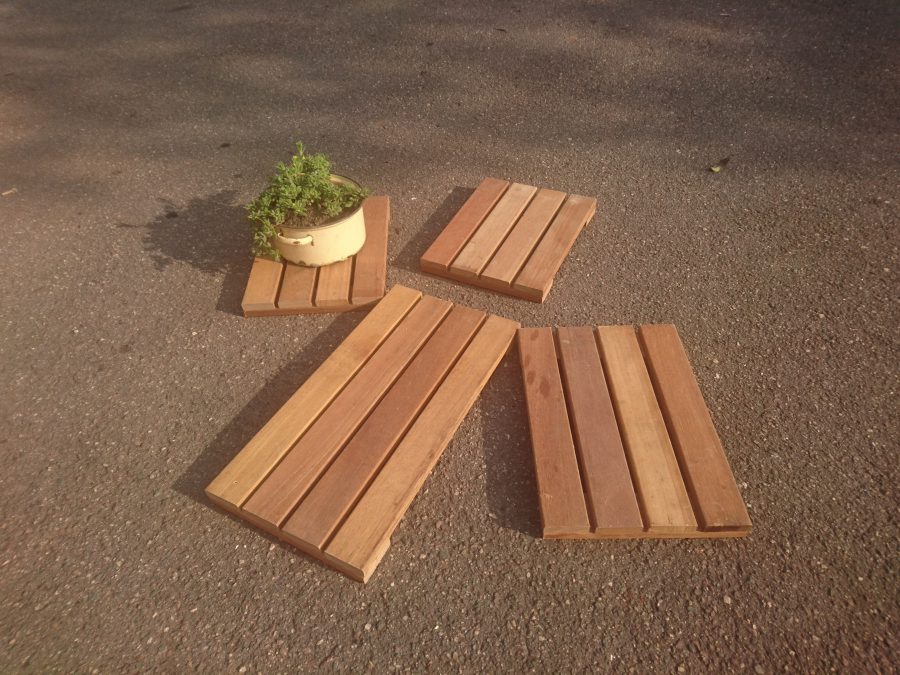

Balau pot plant bases Durban

Balau pot plant bases for wooden decks

I have inspected many a wooden deck in Durban where the deck boards beneath a pot plant have started rotting. As can be imagined, rain water and water from watering the pot plant gets trapped below the pot plant and takes much longer to dissipate or evaporate than water collecting elsewhere on the surface of the wooden deck. This of course causes rot to accelerate below the pot plant resulting in premature and costly maintenance.

It can be easily prevented by placing something below the pot plant that is slightly raised off the deck surface and makes less contact with the deck itself. Water can then evaporate or run off more quickly which will slow the rotting process down. All wood will eventually rot and even though balau is more resistant to rot than other species of timber it is not immune to rot. The pot plant base can be moved periodically so that the water trapped between the pot plant base and the deck can also evaporate.

We manufacture pot plant bases in various sizes from balau deck boards that make as little contact with the deck surface as possible and are both pleasing to the eye and effective in resisting rot. They are inexpensive. At the time of writing this article (8 May 2016). they were retailing for approximately R150-00 each, depending on the size. They can be custom-made to fit the pot plant base and will save you a fair amount of money in future maintenance.

These pot plant bases are a joint venture between The Wood Joint and the staff. The builders make them in their spare time and the company recovers a bit for scrap off cuts. We split the proceeds equally.

You can contact us on 082 496 5444 or use the contact us form below. Please provide the size of pot plant base required or the size of the your pot plant so we can work out what will work best.

Go back

Your message has been sent

Indoor Wooden Balau Pool Deck Built in Estcourt

Posted on by
Reply

Here’s an indoor wooden balau pool deck we built in Estcourt KZN recently.  The client had been doing some renovations on his house and had enclosed the pool with brick walls and windows resulting in an indoor pool.  He wanted a wooden deck around it to finish it off nicely.

Careful consideration was needed to ensure that any water from the pool could quickly drain away so as not to remain wet beneath the deck boards for too long.  Of course with an outdoor deck any rain water or pool water evaporates quite quickly and isn’t of that much concern.  Being indoors however this water can get trapped below the deck for some time resulting in premature failure of the timber.  Although the timber is H3 CCA treated, and as such can live outdoors with periodic wetting, it cannot remain wet constantly.  H4 CCA Treated timber is more suitable for damp conditions such as constant contact with wet soil.  But a fair amount of water on an ongoing basis is not a good idea.

In this instance the builder had done a great job in creating a small fall on all four sides of the pool so that any water dripping or splashing on the deck would fall back into the pool rather than sit below the deck.

The job was relatively easy as there was very little difference in distance between the walls and the sides of the pool.  If the wall is not parallel to the pool then it will result in a wedged shaped deck board either up against the wall or the pool.  To counter this one must “fan” the deck boards by making the gaps on one side 1mm smaller than the gaps on the other side effectively gaining 1mm per deck board.  After 20 deck boards you will gain 20mm to make up any difference.

In fibre glass pools one might also find that the edges of the pool are not straight.  Run a fish line along it to see if it bulges in or out and find the straightest side to start your decking.  If it does bulge then you will need to overlap your deck board on the pool side slightly to cover that and keep the deck boards straight.

A simple single deck board as a fascia board on the inside of the pool finished it off nicely.  It was oiled with a deck oil and this deck will require very little maintenance or re-oiling as it is indoors and won’t get any sun.

Call us on 082 496 5444 for a free quote on your decking requirements.  We also supply and install balustrades, pergolas, walkways, bridges, jacuzzi cladding and pool pump covers.

Go back

Your message has been sent

Timber Suppliers in Durban

Posted on by
Reply
Balau deck boards

As a spin-off of our deck building activities in Durban we started buying and selling decking timber. We found that due to the volume of timber we purchase we can secure it at a better rate and therefore provide it to the end-user, or contractor, at competitive rates.

We carry the most common decking timber sizes and species of timber. A brief outline of our stock follows.

H3 and H4 CCA Treated pine which is normally used for substructures. The most common sizes here are 38 x 114 used as joists and 50 x 228 used as beams. We stock them in various lengths to suit your needs. We also stock a 76 x 76 H4 CCA Treated pine square post. Other sizes are available with short lead times.

H3 treated timber is suitable for use outdoors where it is exposed to the elements and is subjected to occasional wetting (i.e. it gets wet, but has time to dry). Timber that is in constant contact with wet soil needs to be H4 CCA Treated. Timber living in fresh water is H5 treated and salt water requires H6 treatment.

We carry both 19 x 68mm and 19 x 90mm reeded (grooved) yellow balau deck boards. Again we stock various lengths to suit your needs from 2.4m to 4.2m lengths. They are all sourced from either Indonesia or Malaysia and are either MTCC (Malaysian Timber Certification Council) certified or PEFC Certified. (Programme for the Endorsement of Forest Certification).

We also stock a range of structural balau ranging from 30 x 40 to larger 30 x 102mm and 30 x 215mm pieces. Although we don’t carry larger pieces, they can be sourced relatively quickly.

Other decking products such as Massaranduba and Garappa are also available with relatively short lead times.

Decking screws, sealing agents and other timber decking supplies are also available to provide a one stop shop for all your decking requirements.

We will also assist in the design of your deck, if required, and we can assist in calculating quantities in order to limit waste.

For a quote on all your decking timber requirements please call us on 082 496 5444 or use the contact us form below.

Go back

Your message has been sent

Balau Timber Stairs Built in Umhlanga Rocks, Durban

Posted on by
2

These balau timber stairs that we built in Umhlanga are actually temporary stairs which will be removed at some point. They were built in order to gain access up the bank to a converted container that has been placed at the top. It is for a new development at Umhlanga Ridge and the converted container will be used as a sales office to sell the units. Their life span will depend on how long it takes to sell all the units after which the container and stairs will be removed.

We nevertheless used balau as we needed to create a very upmarket feel as this development is targeted at the high-end market.

Initially we were going to build a platform or landing at the bottom, one at the top and one mid way to break the stairs into two flights. However the total distance did not require that and we settled for a landing at the top and one at the bottom. Normally if the flight of stairs is quite long one needs to split them into two flights with a landing mid way. This is to be compliant with National Building Regulations. It is stipulated for safety reasons because a very long flight of stairs becomes dangerous if not split into two flights.

It is a bit more difficult to build two flights with a landing mid way because one needs to first build your top and bottom landings and then work out exactly at what height the middle landing needs to be. This is so that the two flights can be of equal distance and the risers of the first flight can be equal to the risers of the second flight. If the middle landing is not placed exactly in the middle of the total height, the risers of one flight will need to be different to that of the other flight in order to close the gap between landings. It can also result in a different number of risers.

We used balau stingers, cleats and treads. We left the risers open and installed a balustrade down both sides of the stairs for obvious reasons. The balustrade was also full balau and installed in a vertical picket style with a 102mm capping on top.

The stairs were 1m wide which allows for two people to occasionally walk up and down at the same time. I say occasionally because if it was a busy stair case and people were walking both up and down at the same time regularly then one would need to make the stairs 1.5m wide with a balustrade down both sides. There are other building regulations that stipulate when a hand rail is needed in the middle of the stairs case once it reaches a certain width.

For a free no obligation quote on wooden stairs, decks, balustrades and other outdoor timber construction please call us on 082 496 5444 or use the contact us form below.

Go back

Your message has been sent

Wooden Pool Deck Building in Summerveld, Durban

Posted on by
Reply
Wooden Deck and Stairs

We built this wooden pool deck in Summerveld, Durban in July 2015. There were various challenges in this wooden pool deck build which tested our skills somewhat.

Firstly the ground in Summerveld is very rocky, in fact in some areas it is just one large rock, and when digging you are actually making a small hole in a large piece of rock. There were 21 holes in total on this wooden pool deck so digging was slow and costly.

From the pics you can also see that the edge rim of the pool is a rock feature so it is not level or flat and we had to try to get our deck height to a comfortable level for access from the rock rim of the pool on to the wooden pool deck. We also had to then try to conceal the gap between rock and deck as far as possible and as neatly as possible. In some areas it took a full deck board as a fascia and in other areas it was tapered down to a half width deck board.

We ran deck boards perpendicular to the pool to avoid having long thin slivers of deck board on the pool side. When we started out the deck was planned to be half the finished size. As it took shape it was decided to extend it to its final measurements which was a double-edged sword for us as we had to dig even more holes through the rock but it increased our surface area and therefore our earnings. So we put on our big boy pants and carried on. The ends result was that the deck now extends past the front of the house so that when you are standing on the front you can see all the way along the front of the house.

A pool pump cover was added, a full balustrade around the whole deck and we clad the open vertical gaps so that one cannot see below the deck.

In one of the pics above you can see how we have returned the balustrade at 90 degrees on the first corner. This is to give the long run of balustrade perpendicular to it more strength. Long straight runs of balustrade can often become quite “wobbly” and this corner gives it good strength.

We opened a gap in the existing post and rail fence and built stairs from the garden at house level to the pool with a hinged gate and latch. Because of the angle of the stairs, and to prevent digging too deep into the ground at the top of the stairs, we built a small landing.

A short free-standing balustrade was added along the electric fence to provide some protection from the electric fence when accessing the lower garden on the right hand side of the deck.

For a free no obligation quote on your wooden pool deck or other outdoor timber structures please call us on 082 496 5444 or use the contact us form below.

Go back

Your message has been sent

Wooden Pool Deck Built in Kloof, Durban

Posted on by
Reply
Wooden gas bottle enclosure

This wooden deck was a simple pool deck that we built in Kloof, Durban. The pool had originally been built at an angle to the house which limited the available space between the house and pool. The client wanted to create a wooden deck that was parallel to the house so that he could maximise the space between the edge of the pool and the house.

As result we needed to build part of the wooden deck over the pool and the trick was to support it sufficiently over about a 3.5m span so that it didn’t bounce or sag. We couldn’t of course put supports or posts into the pool so we increased the size of the beam running over the pool to a 50 x 152. We still had to trim the 152 down to about 140 as we needed to install this beam on top of the existing pool coping, on both sides, and we were limited by how high we could come up from that surface. In these instances one starts “stealing space”. A term we use at The Wood Joint for gaining every available millimetre possible in order to maximise structural strength.

We then clad the downpipes and support posts of the existing awning with deck boards to create two fairly large wooden posts and hide the PVC downpipes. This gave the effect of large wooden posts holding up the awning. The flower boxes were also clad to match the theme.

A small ledge of about 200mm wide was added along the wall running up to the pizza oven at bar height of about 1.2m from ground. A small cupboard was built in the recess that the builder had left on the right hand side of the braai in which glasses and other braai, or bar, utensils can be stored.

Stainless steel hinges were used aluminium knobs were fitted. We used a normal latch system on the inside so that when you close it, it locates behind, and out of sight. We included a single shelf for glasses. We tucked the deck underneath the braai area so that wood and charcoal can be stored there.

This deck was sanded and sealed with an oil based sealer. An oil based sealer is far superior to a water based sealer or mineral based sealer that dries on the surface. Oil cannot peel and flake. It simply disappears with exposure to UV so there is no need to sand the deck in the future.

We are available to quote on your decking needs. Please call us on 082 496 5444 or use the contact form below.

Go back

Your message has been sent

Balau vs CCA Treated Wooden Deck Durban

Posted on by
Reply

I often get asked about using balau as a substructure in a wooden deck. There are various pros and cons of using balau as a substructure in your wooden deck so I thought I would jot it down and in future I can direct clients here who want the ins and outs of using balau as a structure for your wooden deck.

Balau is a very good, hardy and durable wood to use in outdoor wooden decks and other outdoor projects. It contains toxins that limit insects eating it and it is high in resins and oils which naturally repels water and limits rot. All wood will eventually rot. It is just that some will rot quicker as they are less dense and less oily which means they will absorb water more easily, which remains in the wood, causing fungus to grow which breaks down the fibres in the wood and is commonly called rot. This is a simplified explanation but I think it delivers the message accurately. Water doesn’t cause rot. Fungus, as a result of water and sunlight, causes rot.

Balau therefore will rot and I have started documenting some pics of rotten joists that I have come across in my repair work of wooden decks. It may take 15 years for this rot to start but it will happen and when it does repair work can run into thousands if not a complete deck rebuild. Joists are often difficult to access whereas deck boards are not.

On the other hand a piece of wood that has been chemically treated to prevent, or limit rot, will last a lot longer and a pre determined life span can be calculated.

CCA Treatment is a process of pressure treating SA pine. A vacuum is created in a chamber that contains the pine and a solution of copper, chrome and arsenate is introduced which then takes up the void created by the vacuum sucking the solution into the cells. The copper prevents fungus growing which in turn prevents rot, the arsenate keeps the insects away and the chrome binds the two to the wood so that I doesn’t leach out.

Balau is too hard and dense to treat. Pine is a commercially grown timber in South Africa which is inexpensive and very suitable for treatment as it is soft and takes up the solution of CCA successfully. There are various different Hazard Classification or H classifications. Basically H2 is good for indoors (roof trusses etc.) H3 for outdoors exposed to the elements, H4 for in constant contact with wet soil. H5 for submersion in fresh water and H6 for submersion in salt water. A correctly treated piece of pine to H3 will, as per SAWPA guidelines, last in excess of 50 years which is pretty impressive in comparison to a piece of balau that comes with no fixed life expectancy. A poor quality piece of balau may start to fail within 5 years whereas a good quality piece may only start in 15 years. Most of the pics I have documented here are of decks that range in age from 8 years to 15 years. But generally speaking I have found some rot setting in all the decks of 15 years or older.

S5 (SABS Structural grade) Pine is considerably cheaper than balau structural timber. So from an economic point of view it makes sense to use pine in place of other woods wherever possible.

One might now ask why is pine not used on the surface of a deck? Why is balau preferred?

Balau is a very stable wood and therefore expands and contracts less than pine. It is about twice as dense, knot free and doesn’t twist and warp as easily. Pine is soft and with the sun beating on the deck it will tend to crack, twist and warp more easily. To use pine as a deck board one needs to use a 38mm board as opposed to a 19mm board in balau (twice as much wood). Also pine deck boards are normally manufactured from S7 as opposed to S5. S7 refers to the number of knots per square inch (or centimetre) and is therefore a lot more expensive than S5. The cost of pine deck boards is in fact a few rand more per square metre than balau. Hence the reason to use correctly treated CCA pine as a substructure and balau as deck boards. Again pine doesn’t work well in balustrades because twice as much wood needs to be used at S7 grade.

For a free no obligation quote on your sun deck, pool deck, balustrades, pergolas etc., please call us on 082 496 5444 or use the contact us form below.

Go back

Your message has been sent

Wooden Deck, Umhlanga, Durban

Posted on by
Reply

Here’s a wooden decking project we completed in Hawaan Forest Estate, Umhlanga, Durban. There were two houses right next door to each other so it was a bit easier on the pocket when it came to travel to site. The whole job was quite big too, in excess of 200 square metres of coverage, so it was worth the travel from Home Base in Waterfall, Hillcrest.

House 1 consisted of a fairly large deck of about 80 square metres. It was an interesting deck to build in that it was built flush with the tiled covered patio, extending to the pool, with steps as wide as the deck leading into the garden. It incorporated a fire pit with step benches on three sides set slightly away from the pool. The front of the steps were clad so that beneath the deck was not visible. We met our deck boards at a 45 degree angle on the vertical cladding.

There were various smaller decks around the front of the house and the courtyard consisted of a steel frame and steel gate clad in balau deck boards. There was an interesting deck on the first floor of about 7 square metres that is accessed through a door on to the roof top. It is bordered by three sides of planter boxes surrounded by balau.

The garage doors were 6m wide and 2.7m high. The frame was made of steel and deck boards were used to clad it. It resulted in it being quite heavy but complimented the front of the house by following through with the wood cladding design so typical of Hawaan Forest Estate homes.

Along the front of the first floor are steel sliding screens of 14m x 3.1m high. The decks and courtyard screens were all done in 19 x 68mm balau reeded deck boards whilst the sliding screens on the first floor were done in 19 x 30 balau slat. In order to get a 19 x 30 slat we ripped a normal 19 x 68 deck board in half to 30mm wide. These were then attached to the steel with a 20mm screw from behind so that no screw holes are visible from the front.

Most deck boards are reeded on one side which allows water to dissipate more easily between the deck board and joist, so we had to source non reeded deck boards for this application. If it had been reeded the grooved side would have been visible from either the inside or the outside. Non reeded deck boards are not that common, but they are available, and it is cheaper to rip deck boards to 19 x 30 than to buy 20 x 30mm slats.

House 2 had a much smaller pool deck of about 25 square metres. It was fairly intricate though in that the deck had to be tucked underneath the wall on one side and beneath the tiles of the pool fascia. The patio above the pool had a fall to it to allow water to run off, so the edge of the deck could not be level, otherwise it would have resulted in a stepped join between the wooden deck and the patio. There are also a few smaller decks surrounding this house and it too has a 13m long by 3.1m high sliding screen system in steel with balau 19 x 30 slats.

I will update these pics above once other contractors have completed their areas of work to give you a good idea of what is possible in timber decking and screening.

For a quote, and design, of your wooden decking and screening requirements, please call us on 082 496 5444 or use the contact us form below.

Go back

Your message has been sent
